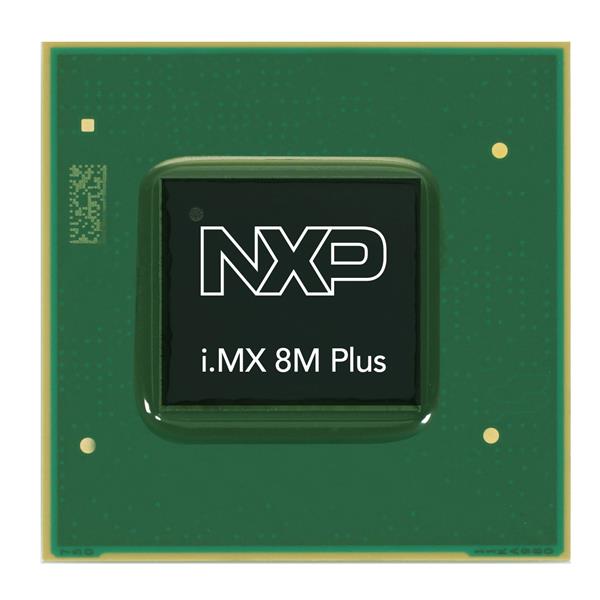

NXP MIMX8ML8DVNLZAB Processors - Application Specialized i.MX 8M Plus Quad

Core: ARM Cortex A53, ARM Cortex M7

Application: Machine Learning, Industrial

Memory Type: DDR4, LPDDR4

Data RAM Size: 868 kB

Data ROM Size: 256 kB

Data Bus Width: 64 bit

Interface Type: CAN, Ethernet, QSPI, SPI, UART, USB

Mounting Style: SMD/SMT

Number of Cores: 5 Core

Watchdog Timers: Watchdog Timer

Instruction Type: Floating Point

Processor Series: i.MX 8M Plus Quad

Moisture Sensitive: Yes

L1 Cache Data Memory: 4 x 32 kB

Maximum Clock Frequency: 800 MHz, 1.8 GHz

Operating Supply Voltage: 850 mV, 950 mV

Number of Timers/Counters: 6 Timer

L1 Cache Instruction Memory: 4 x 32 kB

Maximum Operating Temperature: + 95 C

Minimum Operating Temperature: 0 C

L2 Cache Instruction / Data Memory: 512 kB
