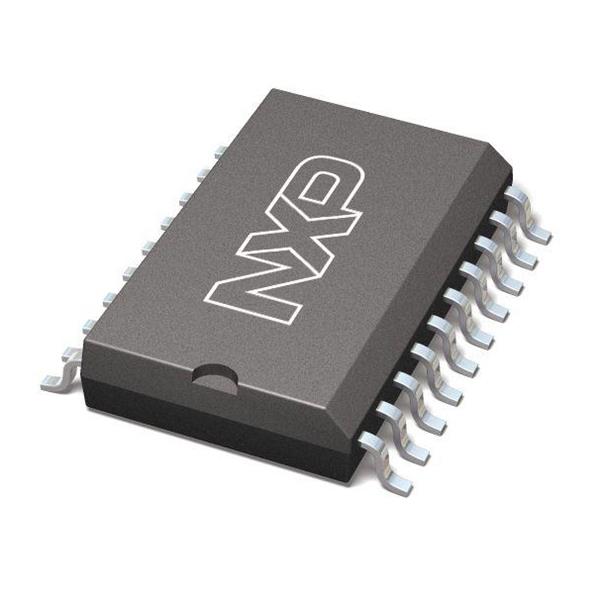

NXP MC9S08JS8LCWJ ມາຄຣອຄຄອນເຕີ 8 BIT,8K FLASH 2.0 USB

Core: S08

Width: 7.6 mm

Height: 2.4 mm

Length: 12.95 mm

Unit Weight: 519.500 mg

Data RAM Size: 512 B

Data RAM Type: RAM

Data ROM Size: 4 kB

Data ROM Type: Boot ROM

Data Bus Width: 8 bit

Interface Type: SCI, SPI, USB

Mounting Style: SMD/SMT

Number of I/Os: 14 I/O

Watchdog Timers: No Watchdog Timer

Processor Series: S08JS

Moisture Sensitive: Yes

Program Memory Size: 8 kB

Program Memory Type: Flash

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 2.7 V

Maximum Clock Frequency: 48 MHz

Operating Supply Voltage: 2.7 V to 5.5 V

Number of Timers/Counters: 1 Timer

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
