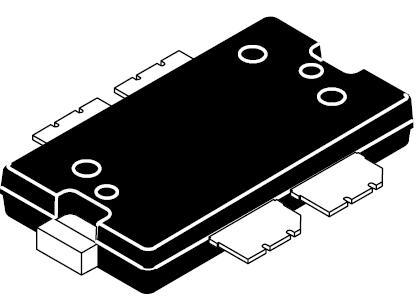

NXP AFT05MP075NR1 RF Power MOSFET MV9 75W 12.5V TO270WB4

Gain: 18.5 dB

Technology: Si

Unit Weight: 1.635 g

Output Power: 70 W

Mounting Style: SMD/SMT

Transistor Type: LDMOS FET

Moisture Sensitive: Yes

Number of Channels: 2 Channel

Operating Frequency: 136 MHz to 520 MHz

Transistor Polarity: N-Channel

Pd - Power Dissipation: 690 W

Vgs - Gate-Source Voltage: + 12 V

Id - Continuous Drain Current: 8 A

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 40 C

Forward Transconductance - Min: 7.3 S

Vds - Drain-Source Breakdown Voltage: 40 V

Vgs th - Gate-Source Threshold Voltage: 2.5 V
