Measuring thicknesses range (depends on probe type): 0.8~300 mm
Setting range of the ultrasonic velocity: 1000-9999 m/s
Discrete readings on the digital indicator: 0.1 mm
Response time, with no more than: 2
Basic measurement accuracy: ± (0,001 T+/- 0.1) mm
Overall dimensions: 120x60x25 mm
Operating temperature range: -5 to +40 °C
Power supply: 2 AAA batteries
Time of continuous work hours, not less: 10 h
Weight of electronic unit with battery: 0.2 kg
Standard package: Electronic unit Ultrasonic Thickness Gauge, Transducer (probe) – 1 pc, 2 batteries, Charger, Cables, Operating manual, Case
Description

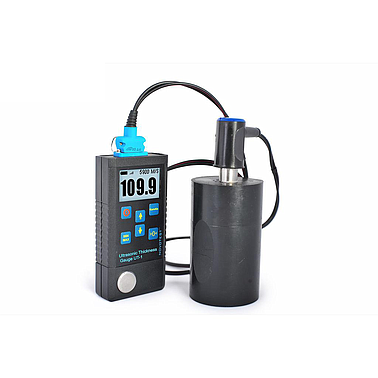

Ultrasonic Thickness Gauge NOVOTEST UT-1 is designed for rapid non-destructive thickness testing of:
- products made of various metals, alloys and other materials;
- glass, plastic, composite and other products from non-metallic materials;
- the walls of the tanks, pipes, casing parts, sheets, overhead, and other structures, including the corroded surfaces, pitted, with scum, etc.;
- products during their production and operation;
- metal products for diagnostic and expert work with one-side access to the tested object.
