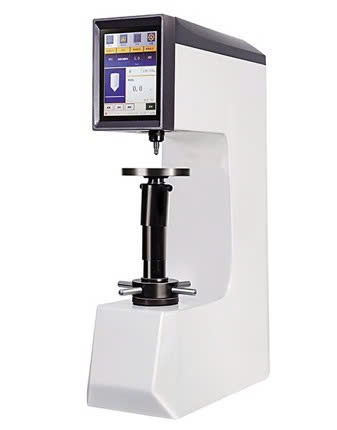

NOVOTEST TS-SR-C2 ເຄື່ອງທົດສອບຄວາມແຮງ Rockwell (60kgf (588N))

Initial Testing Force: Rockwell: 10kgf (98.07N), Superficial Rockwell: 3kgf (29.4N)

Testing Force: 60kgf (588N), 100kgf (980N), 150kgf (1471N), 15kgf (147.1N), 30kgf (294.2N), 45kgf (441.3N)

Rockwell Scale:

Rockwell: HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRE, HRL, HRM, HRP, HRR, HRS, HRV;

Superficial Rockwell: HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HR15W, HR30W, HR45W, HR15X, HR30X, HR45X, HR15Y, HR30Y, HR45Y.

Testing Range:

HRA: 20-88, HRB: 20-100, HRC: 20-70, HRD: 40-77, HRE: 70-100, HRF: 60-100, HRG: 30-94, HRH: 80-100, HRK: 40-100

HRL: 50-115, HRM: 50-115, HRR: 50-115; 70-94 HR15N, 67-93 HR15T, 42-86 HR30N, 29-82 HR30T, 20-77 HR45N, 10-72 HR45T

Reading Resolution: 0.1HR

Carrier Standard: GB/T230.2 National Standard, ISO 6508-2, ASTM E18

Exchange Scale: Plastic Rockwell, Rockwell, Superficial Rockwell

Data Display Mode: 8 inch Touch Screen

Dwell Time: 0-99s adjustable

Data output: Inside Printer RS-232 Port

Max. Height of Specimen: 180mm

Max. Depth of Specimens: 165mm

Power Supply: AC220V ± 5%, 50-60Hz

Dimension: 63x50x96cm (LxWxH)
