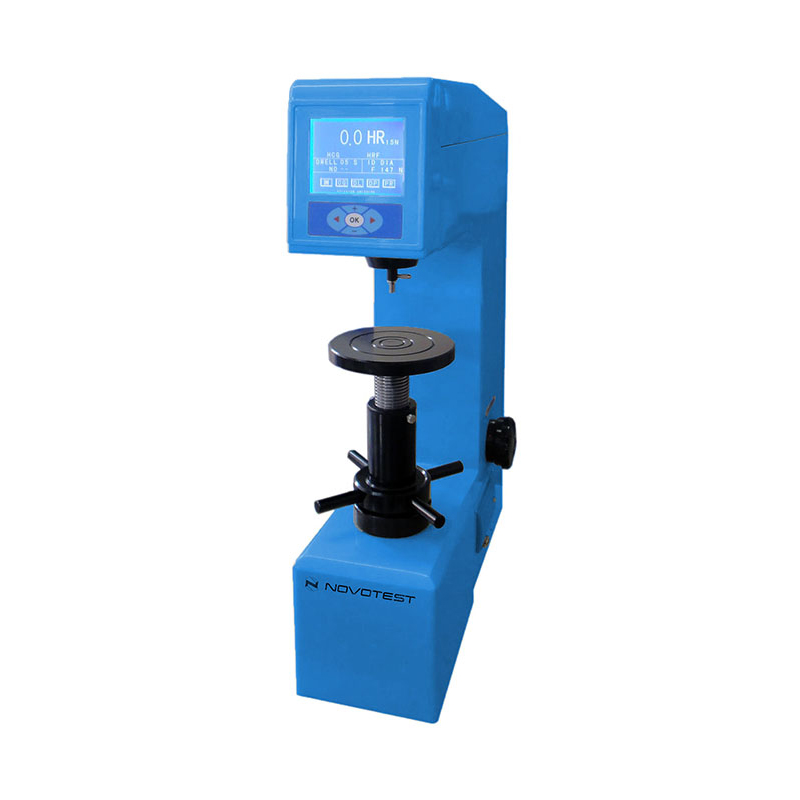

NOVOTEST TS-SR-C Superficial-Rockwell Hardness Tester

Initial testing force: 3kgf (29.42N)

Hardness resolution: 0.5HR

Dwell time: 2-60s

Data output: Inside printer, RS232 data port

Exchange scales: Rockwell, superficial Rockwell

Testing force:

15kgf(147.1N)

30kgf(294.2N)

45kgf(441.3N)

Rockwell scale:

HR15N

HR30N

HR45N

HR15T

HR30T

HR45T

Testing range:

HR15N:70-94

HR30N:42-86

HR45N:20-77

HR15T:67-93

HR30T:29-82

HR45T:10-72

Display mode: LCD digital screen

Power supply: AC220V, 50/60Hz

Carried standard: ISO 6508-2; ASTM E18

Max height of specimens: 200 mm

(can be produced up to 400 mm)

Max depth of specimens: 135 mm

Dimension (cm): 61*40*80 (L*W*H)

Packing weight: 70KG

Standard Package

Diamond Rockwell indenter

Standard superficial Rockwell block 4pc.:

88-92 HR15N

74-82 HR30N

42-55 HR30N

70-82 HR30T

Weight（A, B, C） (1pc. of each)

Dia.1/16’’ ball indenter

Big, medium and V shaped testing platform (1pc. of each)

Dustproof cover

User’s manual book

Quality certificate

Printer manual book
