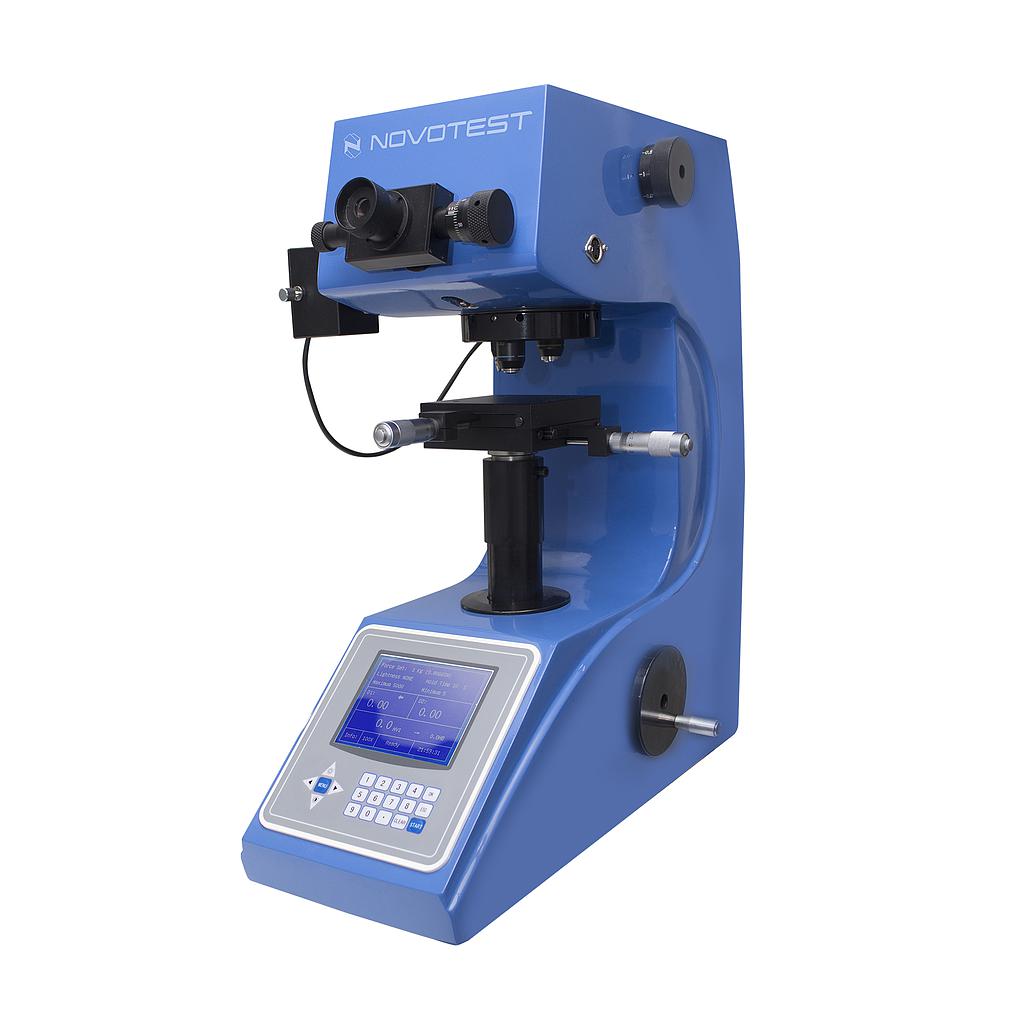

NOVOTEST TS-MCV ເຄື່ອງທົດສອບຄວາມແຂງຂອງ Micro-Vickers (5-3000 HV)
Indenter: Vickers: four-sided diamond pyramid (136 °)
Scales:
HV0.01
HV0.025
HV0.05
HV0.1
HV0.2
HV0.3
HV0.5
HV1
Conversion scales:
HRA
HRB
HRC
HRD
HRF
HV
HK
HBW
HR15N
HR30N
HR45N
HR15T
HR30T
HR45T
Testing load:
10gf (0.098N)
25gf (0.245N)
50gf (0.49N)
100gf (0.98N)
200gf (1.96N)
300gf (2.94N)
500gf(4.9N)
1000gf (9.8N)
Hardness range: 5-3000 HV
Measuring time: 5~99 sec
Testing materials:
+ Carburized layer, ceramic, steel, non-ferrous metals;
+ Sheet, metal foil, plating, fine specimen, surface hardened layers;
+ Coatings, nitride layer, the gradient measurement of carburized layer and hardened layer
+ Hardness measurement of thin and small objects
Max height of test sample: 90 mm
Max depth of test sample: 120 mm
Optical measuring system:
+ Objective lenses: 10X, 40X
+ Eyepiece: 10X
+ Total magnification: 100X, 400X
+ Measuring range: 0-200µm
+ Index value: 0.25 µm
Data output: LCD display; Built-in printer; RS-232 interface
Body color: Blue; White
Recommended operating conditions:
+ Air temperature: 0…+40 °С
+ Air pressure: 94 – 106.7 kPa
+ Humidity: up to 65%
Net weight: 60 kg
Gross weight: 70 kg
Package dimensions: 580*410*870 mm (L*W*H)
Standard package
Micro-Vickers Hardness Tester NOVOTEST TS-MCV
Vickers indenter: four-sided diamond pyramid (136 °)
Weights roller
Weight (6 pcs.)
40X objective lens
10X micrometer eyepiece
Manual XY testing table
Сhuck testing platform
Flat testing platform
Сlamping testing platform
V-shapep testing table
Standard Micro Vickers hardness test blocks (2pcs.)
Horizontal scroll bar
Bolt adjustor (4 pcs.)
Fuse (2 pcs.)
Operating manual
Calibration certificate
Transportation box
