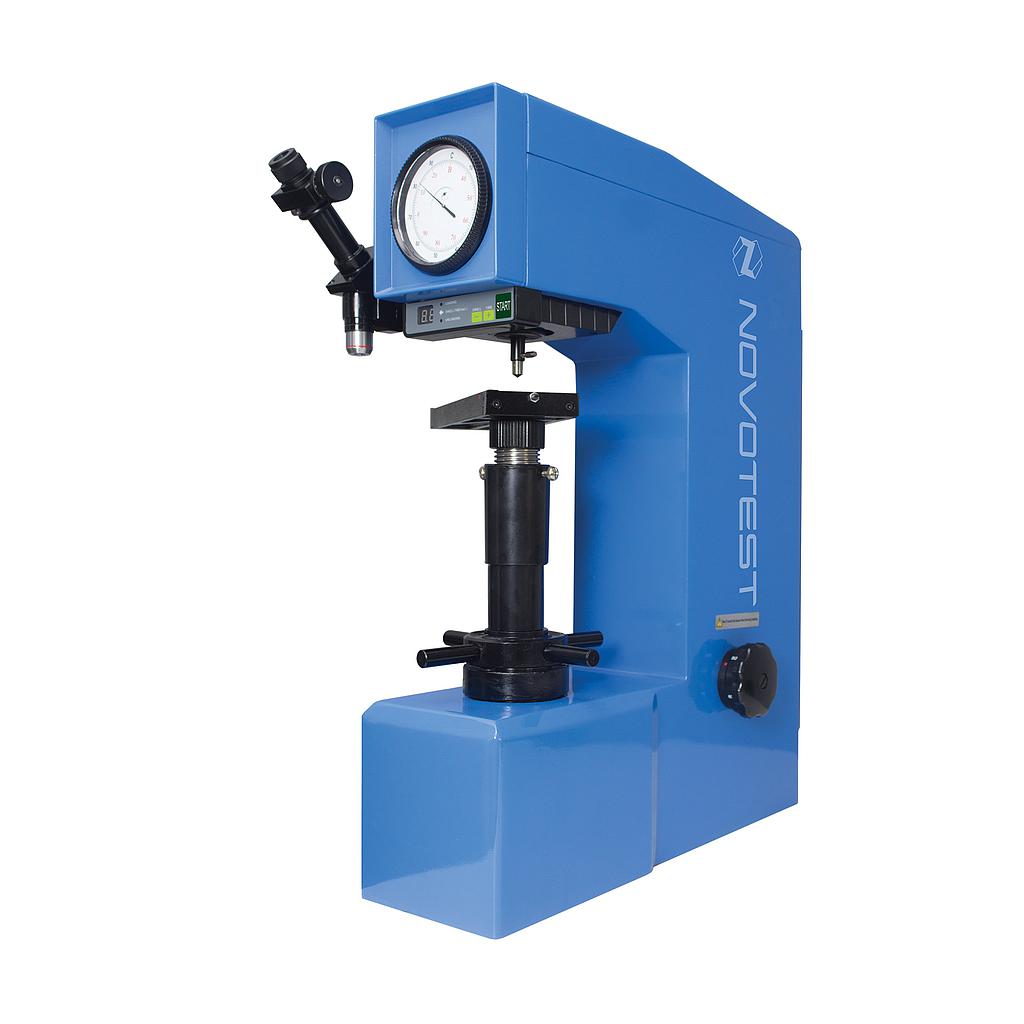

NOVOTEST TS-BRV Brinell, Rockwell, Vickers Hardness Tester
Indenter:
+ Rockwell: conical diamond indenter with a 120° apex angle
+ Brinell: Hard alloy steel ball with a diameter of 1.5875, 2.5, and 5 mm
+ Vickers: four-sided diamond pyramid (136 °)
Test forces:
+ Rockwell: 60 kgf (588N), 100 kgf (980N), 150 kgf (1471N)
+ Brinell: 31.25 kgf (306.5N), 62.5 kgf (612.9N), 187.5 kgf (1839N)
+ Vickers: 30 kgf (294.2N), 100 kgf (980.7N)
Dwell time: 5 ~ 60 sec
Testing materials:
+ Cemented carbides, thin steel, shallow case-hardened steel
+ Copper alloys, soft steels, aluminum alloys, malleable iron
+ Steel, hard cast irons, pearlitic malleable iron, titanium, deep case-hardened steel, other materials harder than 100 HRB
+ Thin steel and medium case-hardened steel and pearlitic malleable iron
+ Cast iron, aluminum and magnesium alloys, bearing metals, thermoset plastics
+ Annealed copper alloy, thin soft sheet metals
+ Phosphor bronze, beryllium copper, malleable irons
Scales and ranges:
+ Rockwell: (20-88) HRA, (20-100) HRB, (20-70) HRC
+ Brinell: (8-650) HBW
+ Vickers: (14-3000) HV
Measurement accuracy:
20 – 75 HRA: ± 2
75 – 88 HRA: ± 1.5
20 – 45 HRB: ± 4
45 – 80 HRB: ± 3
80 – 100 HRC: ± 2
20 – 70 HRC: ± 1.5
100 – 250 HV: ± 2%
300 – 1000 HV: ± 3%
≤125 HBW: ± 3 HBW
125<HBW≤22: ± 2.5 HBW
>225 HBW: ± 2 HBW
Dwell time: 2 – 60 s
Max height of test object:
+ Rockwell scale – 170 mm (optionally up to 400 mm)
+ Brinell scale – 140 mm (optionally up to 370 mm)
+ Vickers scale – 140 mm (optionally up to 370 mm)
Maximum depth of the test object: 165 mm
Data output: Dial indicator
Type: Mechanical electrical, analog
Power supply: AC 220V ± 5%, 50-60 Hz
Microscope zoom: 15X
Lense zoom: 2.5X, 5X
Data output:
Rockwell – dial
Brinell – measuring microscope
Vickers – measuring microscope
Operating conditions:
+ Air temperature: 0…+40 °С
+ Air pressure: 94 – 106.7 kPa
+ Humidity: up to 65%
Net weight: ~ 70 kg
Gross weight: ~ 85 kg
Package dimensions: 520 х 420 х 700
Standard Package
Universal Hardness Tester NOVOTEST TS-BRV – 1 pc
Rockwell conical diamond indenter with a 120° apex angle – 1 pc
Vickers indenter (four-sided diamond pyramid indenter (136 °) – 1 pc
Brinell indenter (1.5875, 2.5, and 5 mm) – 1 pc each
Weight – 5 pcs
Large testing table – 1 pc
Medium testing table – 1 pc
V-shaped testing table (D=40mm) – 1 pc
Movable testing platform – 1 pc
Rockwell Hardness Test Blocks:
– HRC – 2 pcs
– HRB – 1 pc
Brinell Hardness Test Block HB – 1 pс
Vickers Hardness Test Block HV – 1pс
Power cable – 1 pc
Fuse – 2 pcs
Operation manual
Transportation box
