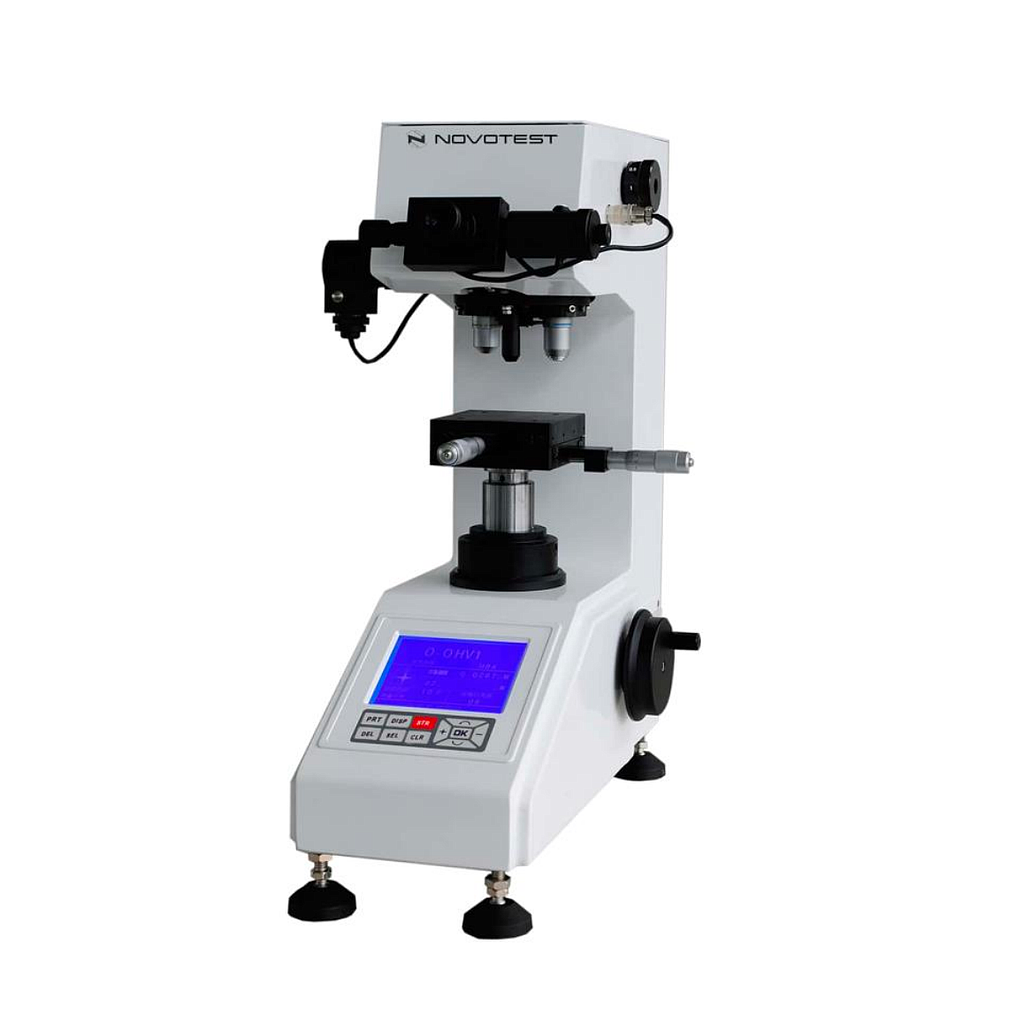

NOVOTEST TB-V-50 ເຄື່ອງທົດສອບຄວາມແຂງຂອງ Vickers ດິຈິຕອນ (8~2500 HV)
Indenter Vickers: four-sided diamond pyramid (136 °)
Scales: HV, HK
Conversion scales: HRA, HRB, HRC, HRD, HRF, HV, HK, PBR, HR15N, HR30N, HR45N, HR15T, HR30T,HR45T
Testing load: 1.0Kgf (9,8N), 2.0Kgf (19,6N), 2.5Kgf (24.5N), 3.0Kgf (29,4N), 5.0Kgf (49.0N), 10Kgf (98.0N), 30Kgf (294N), 50Kgf (490N)
Hardness range: 8 HV(0.3) ~ 2500 HV(10)
Measuring time: 5~60 sec
Testing materials :
+ Carburized layer, ceramic, steel, nonferrous metals
+ Sheet, metal foil, plating, fine specimen, surface hardened layers
+ Coatings, nitride layer, the gradient measurement of carburized layer and hardened layer
+ Thin and small objects
Max height of test sample: 160 mm
Max depth of test sample: 135 mm
Microscope zoom:
+ For the measurement – 200X
+ For the observation – 100X
Data output:
+ LCD
+ Built-in printer
+ RS-232 interface
Recommended operating:
+ Air temperature: 0…+40 °С
+ Air pressure: 94 – 106.7 kPa
+ Humidity: up to 65%
Net weight: 63 kg
Gross weight: 73 kg
Package dimensions: 760*380*750 mm (L*W*H)
