Preload: 98,07N (10kg)
Testing load: 588,4N (60kg); 980,7N (100kg); 1471N (150kg)
Rockwell scale: 20-88 HRA; 20-100 HRB; 20-70 HRC
Maximum height of test sample: 200 mm
Maximum depth of test sample: 165 mm
Instrument dimensions: 630 x 500 x 860 mm
Net weight: 55 kg
Standard package: Bench hardness tester; Ball indenter (1.5875 mm); Conical diamond indenter (by 120 °); Big flat table; Small flat table; V-shaped table; Rockwell hardness calibration blocks (3 pcs.); Operating manual
Application:

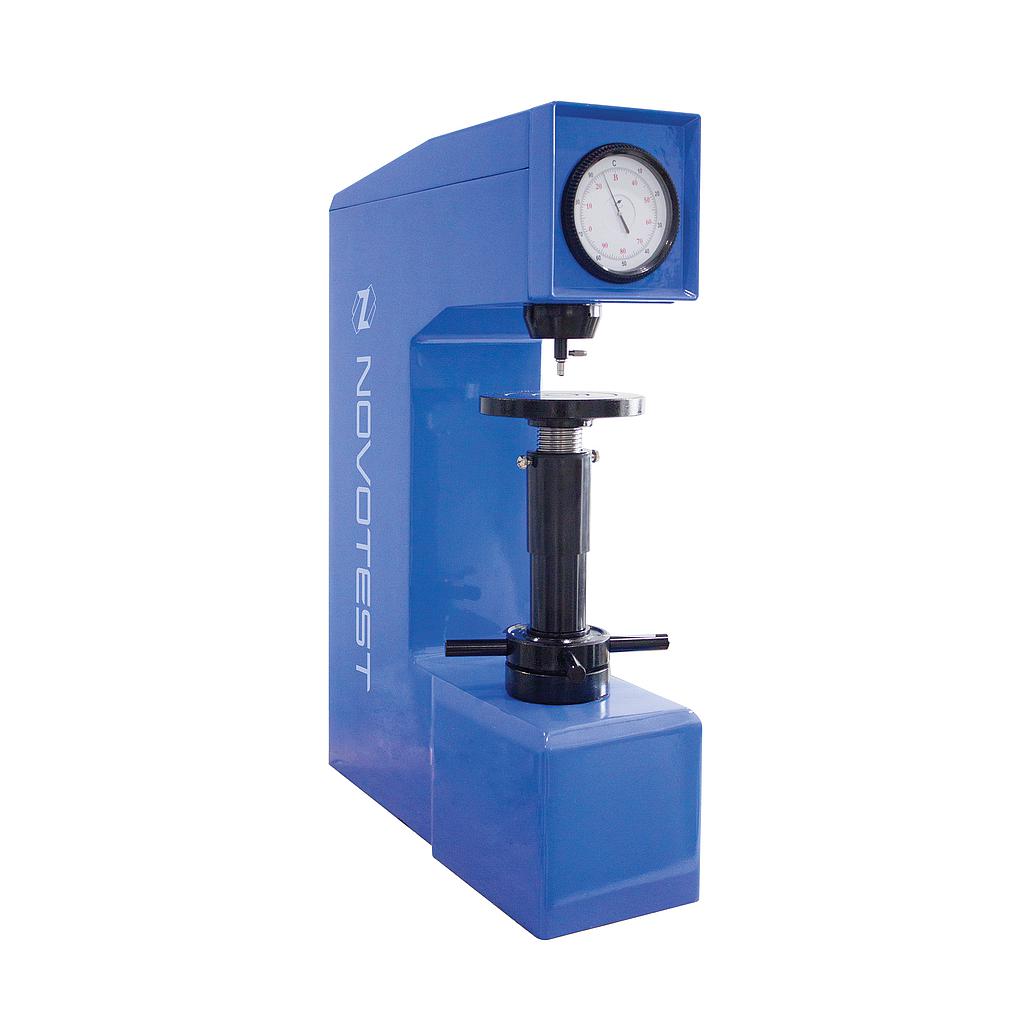

The mechanical Rockwell bench hardness tester can be used for:
- hardness testing of products made of various kinds of steels, such as tempered cast iron and all sorts of alloys, stainless steel and others; tempered cast iron and all sorts of alloys
- manufacturing of calibration test blocks, which can be used for calibration of portable hardness testers
Advantages:
- High measurement accuracy
- Wide range of measurements
- Device is very usability and reliability, through the using high quality materials in the manufacturing
- Significant advantages from other methods of hardness testing of tempered steels
- Device allows user to test steel samples after various heat treatments
- Device allows test blocks verification for calibration of portable hardness tester
Datasheet
