Rockwell scale: HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK
Standard testing force: 10kgf (98N)
Testing forces: 60kgf (588N), 100kgf (980N), 150kgf (1471N)
Other scales: Rockwell, Brinell, Vickers
Indication of hardness value: Digital display with large LCD screen
Output of data: Built-in printer; RS-232 interface
Measuring time: 0~60 sec
Dimensions: 520*240*720 mm (L*W*H)
Net weight: 80 kg
Max height of test sample: 170 mm
Max depth of test sample: 165 mm
Power supply: 220V±5%, 50~60Hz
Standard package: Diamond Rockwell indenter; Hard alloy steel ball indenter d=5875 mm; Large testing table; Medium testing table; V-shaped testing table; HRC and HRB hardness blocks (2pcs.); RS-232 interface; Power cable
Option Rockwell Hardness Test Block HRC (HRA orHRB): 160 USD
Option Brinell Hardness Test Blocks HB: 300 USD
Option Vickers Hardness Test Blocks HV: 240 USD
Option Leeb Hardness Test Block (type D): 320 USD
Option Leeb Hardness Test Block (type G): 800 USD
Application:
Rockwell Hardness Tester NOVOTEST TB-R-C allows user to measure hardness of:
- hardened and surface hardened steel, hardened and tempered steel;
- cold and hard casted parts, forged parts;
- hard alloy steel;
- aluminium alloys;
- bearing steel;
- carbonized steel sheets and others.
Description

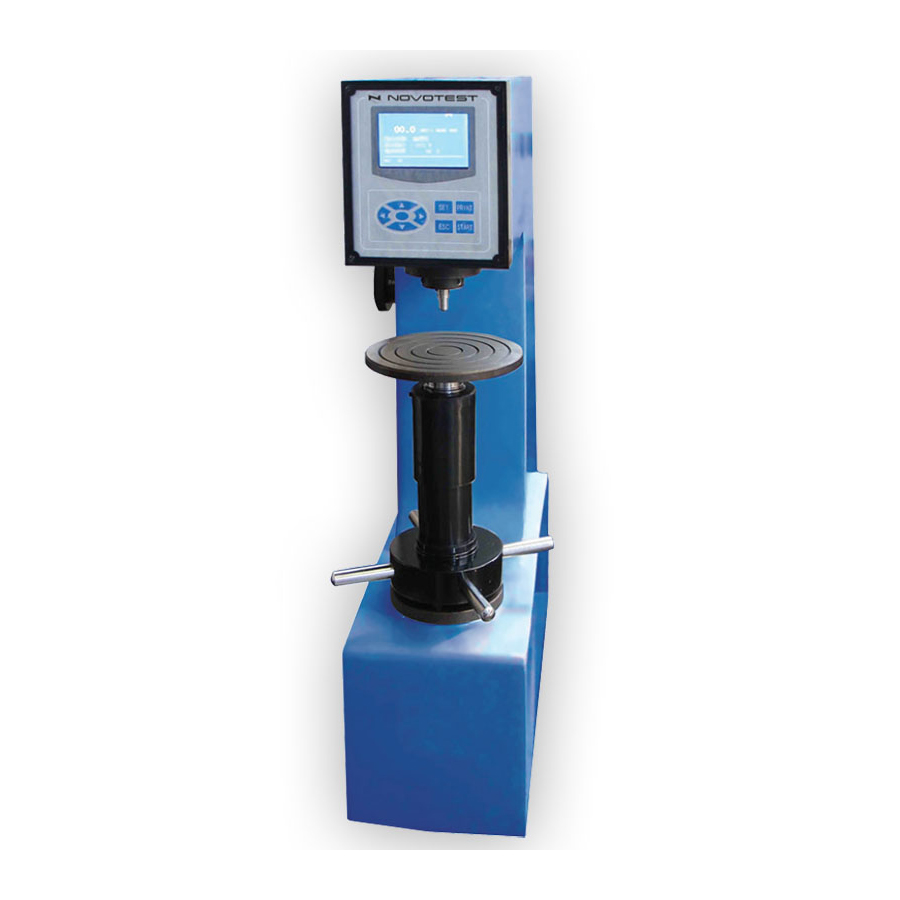

- Digital Rockwell Hardness Tester NOVOTEST TB-R-C is a digital model with new-designed large LCD screen to display the structure of menu. The bench Rockwell hardness tester has the hyper terminal setting RS-232 with good reliability, excellent operation and easy watching.
- The Rockwell hardness test uses the method of measuring indentation depth. The hardness values are read directly through the LCD screen. Therefore, it is easy to operate the hardness tester with high efficiency. The hardness tester is suitable for inspect batches of spare parts. Digital Rockwell Hardness Tester NOVOTEST TB-R-C allows to use the diamond indenter and ball indenter, which can measure the hard and the soft samples. So, it has been widely used in production to become the most detecting device for inspecting the product quality and determining the reasonable processing technology.
Datasheet
