Brinell scale: HBW2.5/62.5, HBW2.5/187.5, HBW5/62.5, HBW5/125, HBW5/250,HBW5/750, HBW10/100, HBW10/250, HBW10/500, HBW10/1000, HBW10/1500, HBW10/3000
Testing force: 62.5kgf(612.9N), 100kgf (980.7N), 125kgf 1226N), 187.5kgf (1839N), 250kgf (2452N), 500kgf (4903N), 750kgf (7355N), 1000kgf (9807N), 1500kgf (14710N), 3000kgf (29420N)
Minimum size of testing products: 0.005 mm
Microscope zoom: 20X
Output of data: Built-in printer; RS-232 interface.
Measuring time: 5~60 sec
Dimensions: 550 x 210 x 750 mm
Net weight: 125 kg
Max height of test sample: 230 mm
Max depth of test sample: 135 mm
Power supply: 220V±5%, 50~60Hz
Standard package: Set of measuring microscope, Hard alloy ball indenters (5,5 and 10mm), Calibration hardness blocks (3 pcs), Large testing table, Medium testing table, V-shaped testing table, Power cable
Option Rockwell Hardness Test Block HRC (HRA orHRB): 160 USD
Option Brinell Hardness Test Blocks HB: 300 USD
Option Vickers Hardness Test Blocks HV: 240 USD
Option Leeb Hardness Test Block (type D): 320 USD
Option Leeb Hardness Test Block (type G): 800 USD
Application:
Brinell hardness tester uses the heavy testing force (large indentation), which allows user to measure:
- hardness of coarse-grain metal materials (casted parts, non-ferrous metals and alloys);
- hardness of various tempered steels, hardening and tempering steels;
- hardness of products from soft metals (pure aluminium, lead, tin) and others.
Description

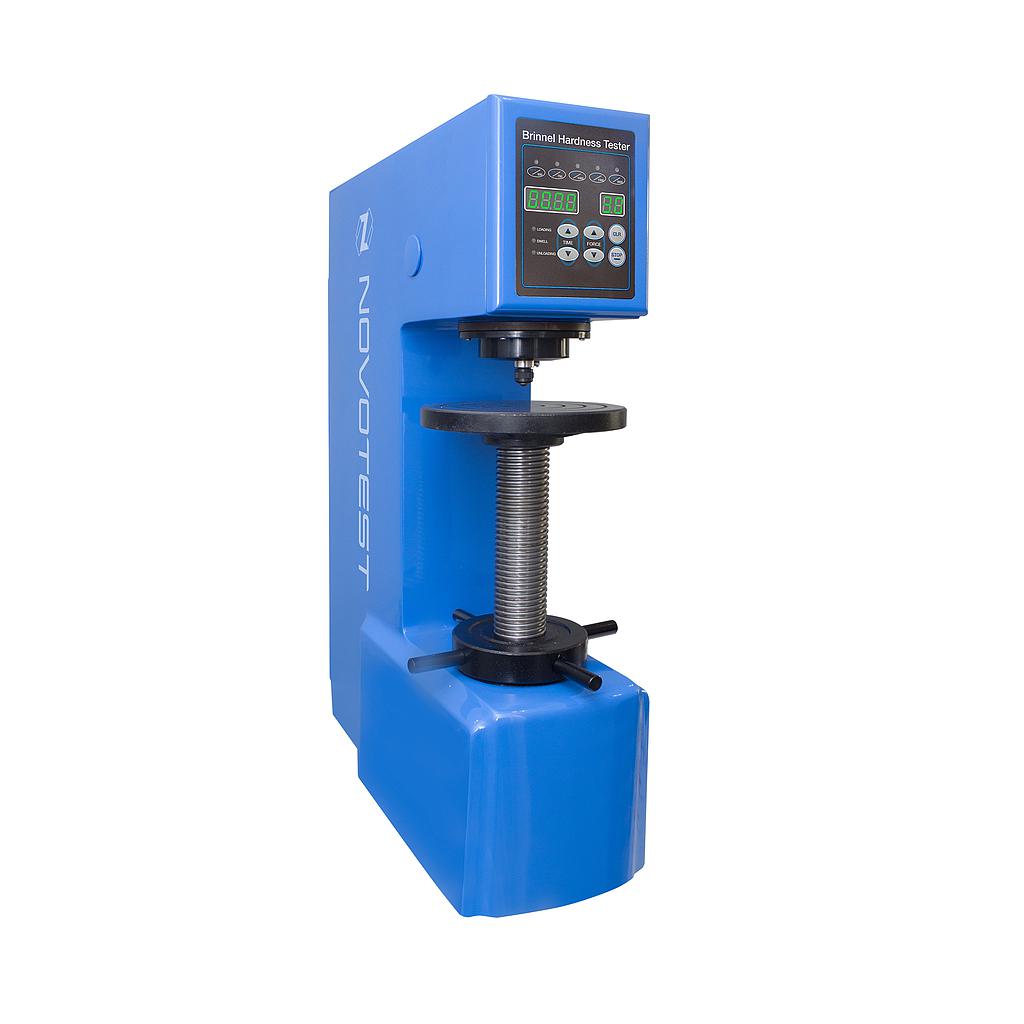

- Digital Brinell Hardness Tester NOVOTEST TB-B-C has 10 steps testing force settings, allows user to measure hardness values with each of 10 Brinell hardness scales. The device uses the round type of indenter along with the control system. It is highly accurate, gives repeatable results, reliable and easy to operate.
- Digital Brinell Hardness Tester NOVOTEST TB-B-C has fully automatically test cycle: loading, dwell and unloading. As a result, the operator errors don’t influence on measuring results.
- Motorized indenter and electronic control system allow making measurements with high accuracy. Absence of mechanical weighs reduce problems of friction and vibration sensitivity of the machine.
