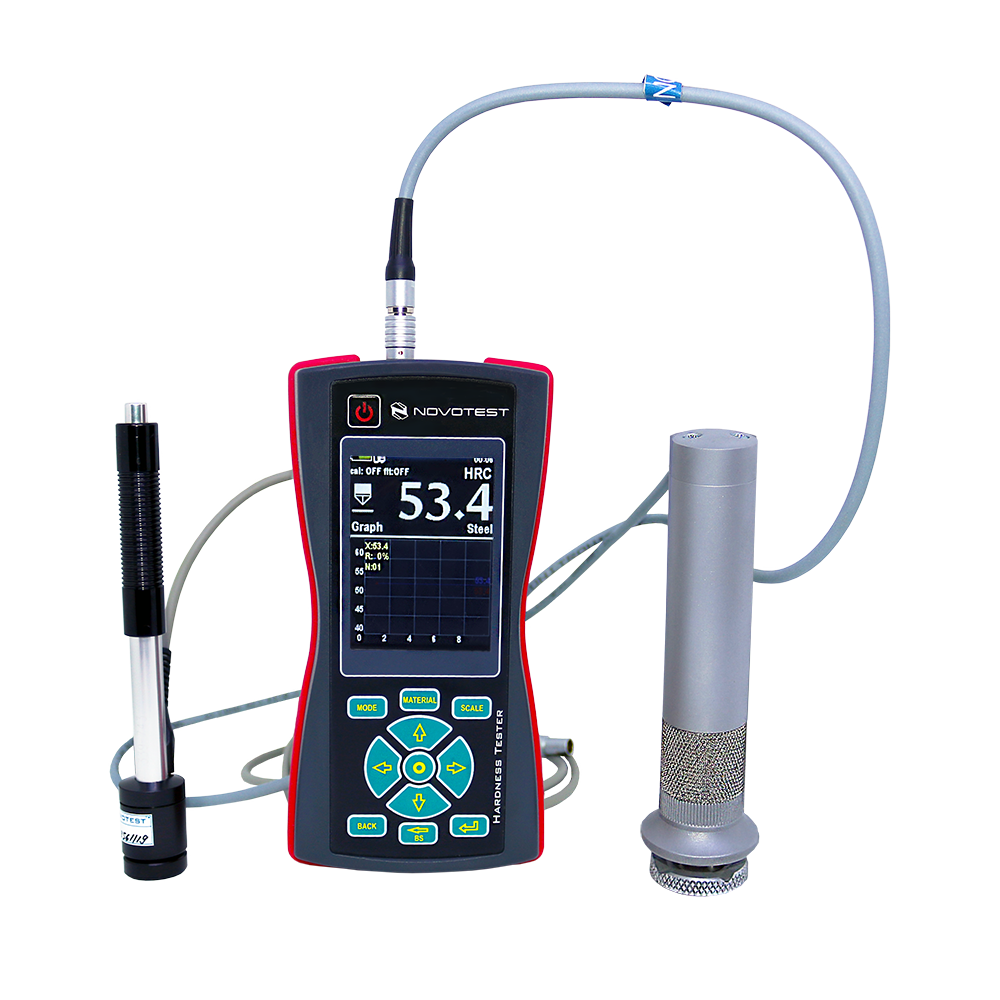

NOVOTEST T-UD3 ເຄື່ອງທົດສອບຄວາມແຂງແບບປະສົມປະສານ (T-UD3 LAB)

UCI probe types: 1kgf (10N) 2.2 lbf; 5kgf (50N) 11lbf; 10kgf (98N) 22lbf

Leeb probe types: D, DC, DL, C, D+15, E, G

Measuring range: HRC:20~70; HB:90~650; HV:240~940; Tensile strength, MPa: 370~1740

Measurement ranges can be expanded by the user (for example: 1 – 2000HV)

Measuring accuracy: HRC: ±15HV, ±2HRC, ±10HB, ±4HLD

Measuring direction: Any direction 360°

Data storage:

Device – 4GB SD card (~13000 measurements)

NOVOTEST Lab App – limited only by the memory of the Android gadgets

Cloud storage – limited only by the memory of the Cloud storage

Data transfer: Wireless connection with Android smartphones, tablets, etc.: - NOVOTEST Lab App

PC: - Web interface – NOVOTEST.INFO

Hardness scale:

UCI probe: HRC, HB, HV, MPa

Leeb probe: HRC, HB, HV, HLD, MPa

Materials:

- Ultrasonic (UCI) probe – pre-calibrated for steel

- Dynamic (Leeb) pre-calibrated for steel, alloy steel, cast iron, stainless steel, aluminum, bronze, brass, copper

- Additional custom materials for calibration

Operating environment: Temperature: -20°C ~ 50°C, Humidity: <95% R.H. at 35°С

Power supply: 3 pcs AA batteries / 5V USB

Instrument dimensions: 160x75x30mm

Net weight: Approx. 0.3kg (without probe)

Battery life: Approx. 10 hours

Includings:

Hardness tester

UCI probe (10N, 50N or 98N for choice)

Leeb probe (D type)

3pcs AA batteries

Charger

USB cable

Operating manual

Software for PC

Case
