UCI probe types: 1kgf (10N) 2.2 lbf, 5kgf (50N) 11lbf, 10kgf (98N) 22lbf
Leeb probe types: D, DC, DL, C, D+15, E, G
Scales
- UCI probe: HRC, HB, HV, MPa
- Leeb probe: HRC, HB, HV, HLD, MPa
Measurement hardness range:
+ Rockwell, HRC: 20~70
+ Brinell, HB: 90~650
+ Vickers, HV: 240~940
+ MPa: 370~1740
Measurement ranges can be expanded by the user (for example: 1 – 2000HV)
Measuring accuracy: ±15HV, ±2HRC, ±10HB, ±4HLD
Measuring direction: Any direction 360°
Materials
+ UCI probe – pre-calibrated for steel.
+ Leeb probe – pre-calibrated for steel, alloy steel, cast iron, stainless steel, aluminum, bronze, brass, copper.
+ Additional custom materials for calibration.
Operating environment Temperature: -20°C ~ 50°C, Humidity: <95% R.H. at 35°С
Power supply: 2 AA batteries / AA charger
Dimensions: 122х76х37 mm
Weight of electronic unit with battery, no more: 0.25 kg
Batteries life: 20 h
Standard package: Electronic unit; UCI probe; Leeb probe; 2 batteries; Charger; USB cable; Operating manual, Software for PC, Case
Optional
Option Rockwell Hardness Test Block HRC (HRA orHRB)
Option Brinell Hardness Test Blocks HB
Option Vickers Hardness Test Blocks HV
Option Leeb Hardness Test Block (type D)
Option Leeb Hardness Test Block (type G)
Descriptions:

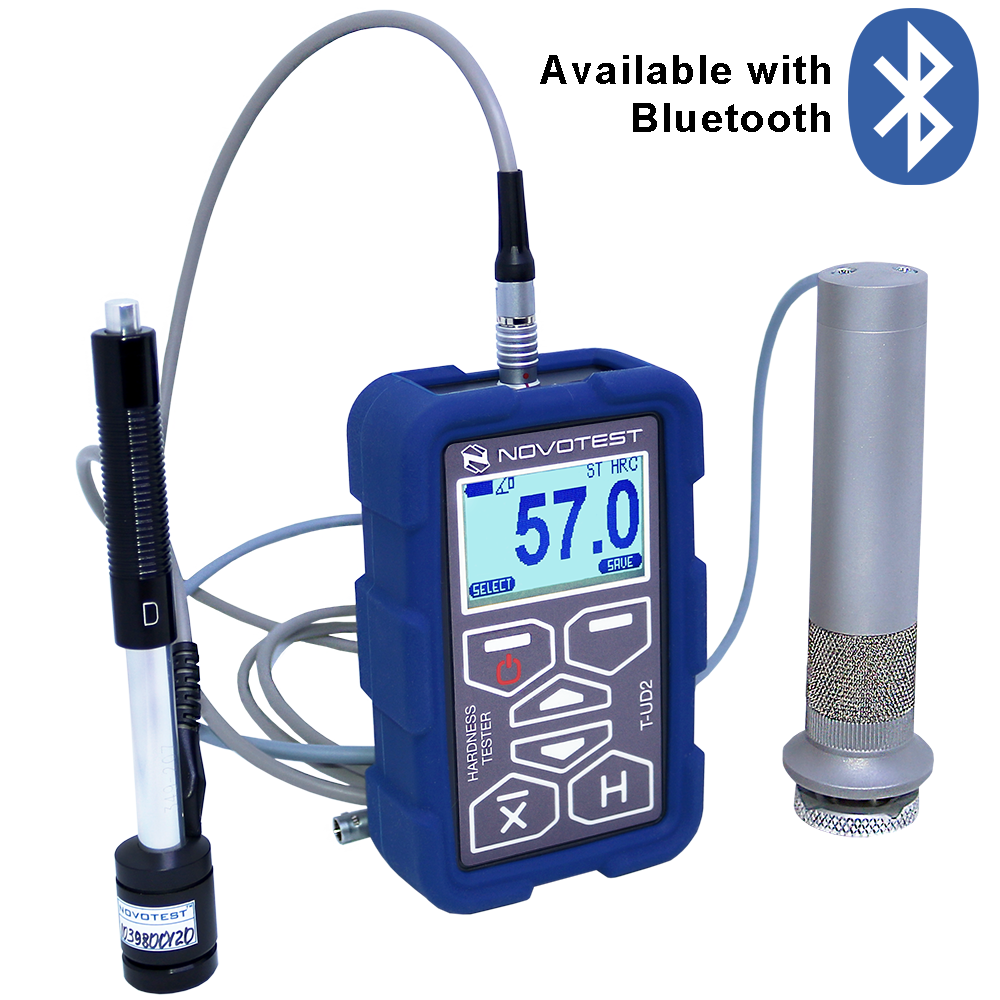

- The Combined Hardness Tester NOVOTEST T-UD2 combines the advantages of two methods: UСI (ASTM A1038) and Leeb (ASTM A956), which makes it possible to solve almost any task of operational hardness testing. With this device, the user will be able to measure the hardness of both a large products with a rough surface and a small samples of complex shape and with a thin wall.
- This modification of the device has all functions for working with various materials and scales, which makes it an optimal device for non-destructive testing of metal hardness.
The device can be equipped with a Bluetooth module!
- Do hardness measurements, calibrate the device, set up a convenient display of values, save the results of hardness measurements, synchronize the archive with your other devices and a PC, transfer measurement results to your colleagues – all this is available with your smartphone thanks to the special NOVOTEST app for Android.
- Using a Bluetooth connection, your smartphone connects to the hardness tester and you have a completely new device – a new generation hardness tester! The intuitive interface, ample opportunities for documenting results, Internet access, touch screen, camera, microphone and GPS receiver of a smartphone turn your hardness tester into something completely unique and previously inaccessible.
The main advantages of the Combined Hardness Tester NOVOTEST T-UD2 are:
- 2 removable probes: ultrasonic contact impedance (UCI) and dynamic, rebound (Leeb)
- There are almost no restrictions for hardness testing (by weight, configuration, structure, degree of mechanical and thermal treatment, etc.)
- To evaluate changes in the hardness of the hardened layer depth articles and the effect of surface stress
- Wide range of hardness value
- Convenience and ease in operation
- Graphical contrast display with backlight
- Automatic recognition of probe
- Extended temperature range (cold-resistant, down to -20 °C)
- Device has internal memory and allows user to transmit data to PC
Option
- Standard Set of Rockwell Test Blocks HRC (3 pc. In set)
- Standard Set of Brinell Test Blocks HB (3 pc. In set)
- Standard Set of Vickers Test Blocks HV (3 pc. In set)
- Leeb Hardness Test Block (1 pc. In set)
