Dimensions of electronic unit, mm: 120x60x25
Operating temperature range, °C: -5 … +40°C
Batteries: 2 AA
Time of continuous work hours, not less: 20
Weight of electronic unit with batteries, no more, kg: 0.2
Specification of the DSH probe:
- Measurement range: 2-360 μm
- Measurement accuracy: ± (3% ± 2 μm)
- Dimensions, mm: Ø 12×45
Standard package:
-Electronic unit NOVOTEST TP-1M
-Probe DSH – 1 pc
-Set of reference samples
-Batteries (AA) – 2 pcs
-Charger
-Operating manual
-Case
Description
- Digital Surface Profile Gauge NOVOTEST SP-1M is designed for profile measuring on either flat or curved surfaces. Also it can be used for measurements of surface roughness (Rz), after abrasive blasting pre-painting work.

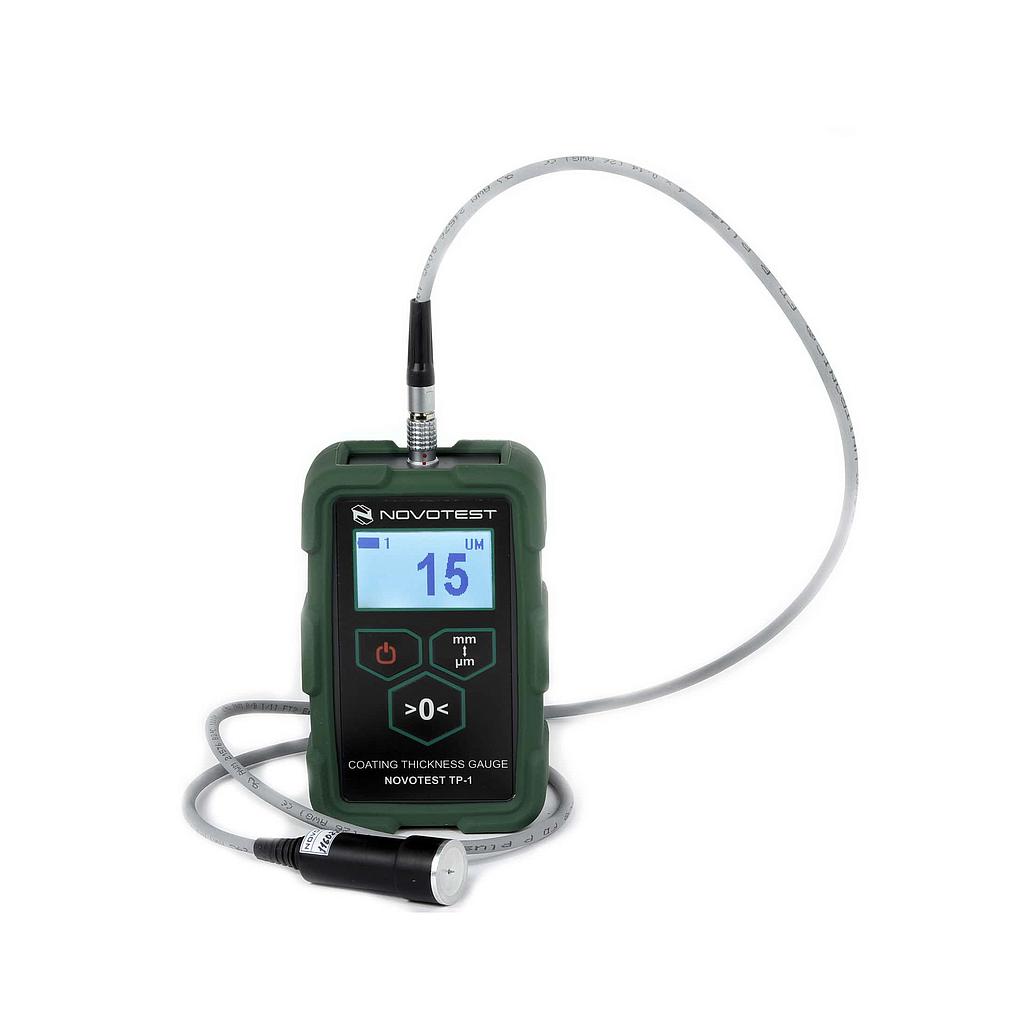

- The electronic unit is the same as Coating Thickness Gauge NOVOTEST TP-1M.
- NOVOTEST SP-1M consist of electronic block of Coating Thickness Gauge NOVOTEST TP-1M and probe DSH.
