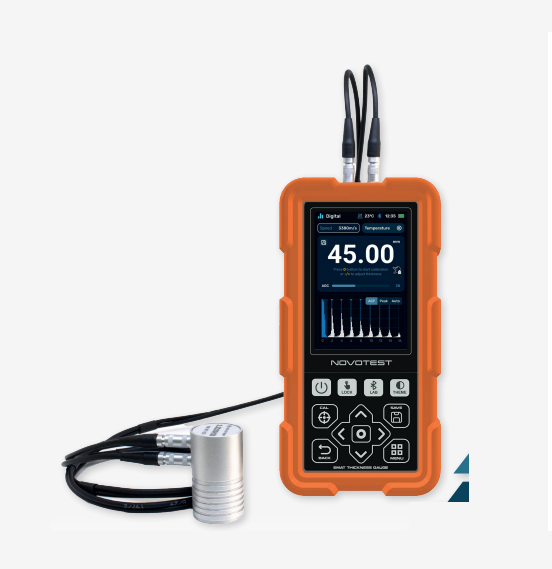

NOVOTEST NEXUS EMAT ເຄື່ອງມວນຄວາມຫນາ (0.6 – 300 mm)
Measurement thicknesses range for steel : 0.6 – 300 mm (and more, depending on the probe type and object characteristics)
Coating thickness or air gap range : Up to 6 mm (depending on the object characteristics)
Measurement accuracy: ±(0.01h + 0.05)
Measurement resolution : 0.01 mm / 0.0001 inch
Measurement units : mm (m/s); inch (inch/μs)
Probes temperature measurement ranges:
- Standard probe: -20 to +50°C
- High-temperature probe: -20 to +250°C
(depending on the conditions and measurement and cooling cycle – up to +600°C)
Ultrasound velocity adjustment range : 1000 – 9999 m/s
Gain range : 30 – 100 dB (autogain)
Measurement modes: Digital; Auto; Advanced
Special modes: Spreadsheet; B-scan; Control
Data storage: Device - 4GB SD card (~13000 measurements); NOVOTEST Lab App – limited only by the memory of the Android gadgets; Cloud storage – limited only by the memory of the Cloud storage
Data transfer: Wireless connection with Android smartphones, tablets, etc.:- NOVOTEST Lab App PC: - Web interface – NOVOTEST.INFO
Languages : English, Spanish, Ukrainian, Russian *additional languages available by request.
Power supply / Charging : Built-in Li-ion battery / 5V USB
Batteries life : 8 h
Operating environment : Temperature: -20°C ~ 50°C, Humidity: <95% R.H. at 35°С
Dimensions and weight of electronic unit : 175x85x40 mm / 0.3 kg
