Measuring range, mm: 0.05 – 8
Size of the contact pad, mm: F10, F25, F40 (number and size of tips is according to customer requirements)
Minimum diameter of hole or the minimum width of groove, mm: 1.7 (only when using the probe №2)
Dimensions, mm: 40x60x40
Weight, kg: 0.25
Standard package:
- Device with one probe
- Tip F10
- Operating manual
- Package
Description:

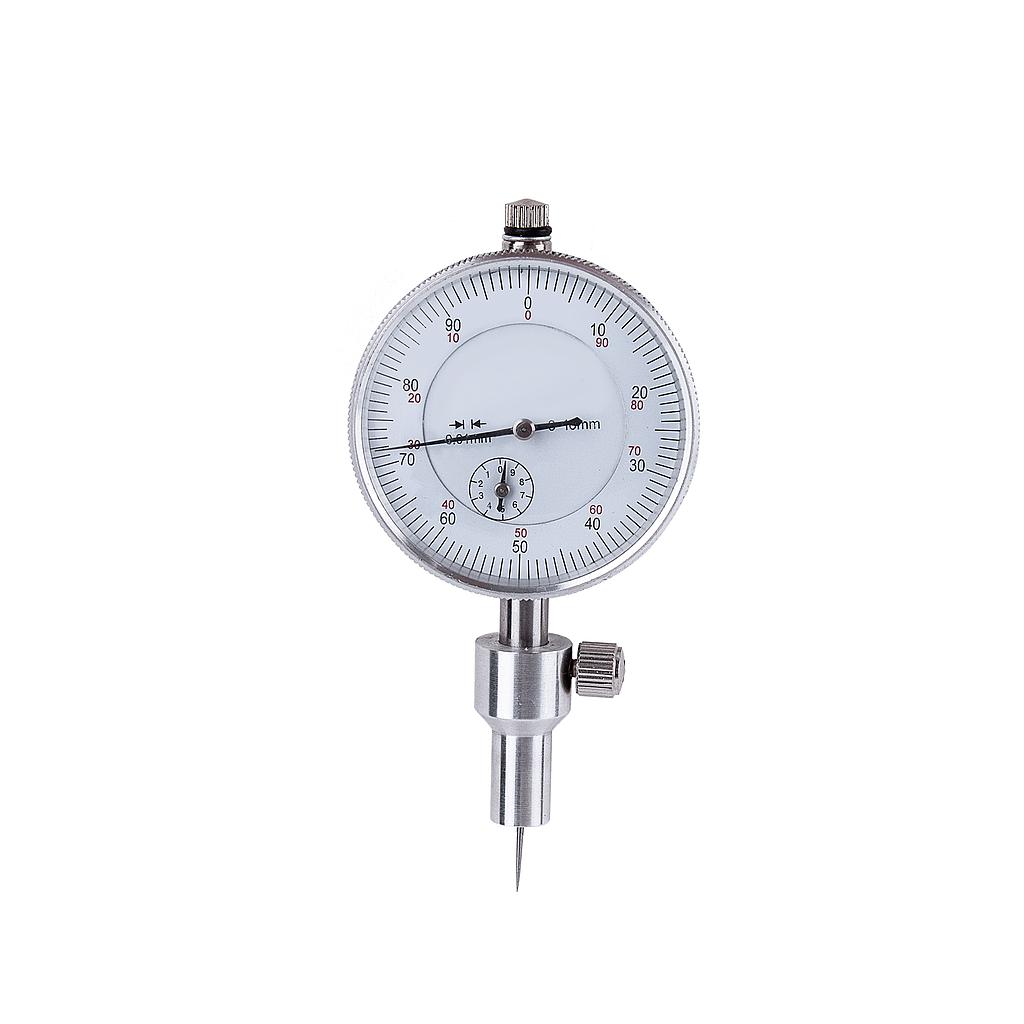

Mechanical depth gauge of focal corrosion.
Application:
Mechanical depth gauge is designed to comply with ASTM D 4417-B, SANS 5772, US Navy NSI 009-32, US Navy PPI 63101-000 for (depending on configuration): measures the peak-to-valley height of a blast cleaned surface; measurement the depth of focal corrosion; measures depth of narrow holes and grooves.
Datasheet
