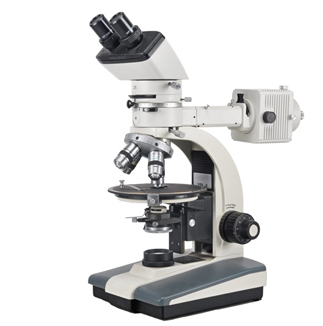

Novel XPL-2 Polarizing Microscope (binocular,45°,WF10×/18,0°-90°)
ຜູ້ຜະລິດ: Novel Model: XPL-2 ທີ່ມາ: China - ຕິດຕໍ່ພົວພັນ
Viewing Head: Sliding binocular viewing head, Inclined at 45°
Eyepiece
Eyepiece WF10×/18 with scale of cross hair
Eyepiece WF10×/18 with graticule
Eyepiece WF 10×/18
Objective
Strain free achromatic objective 4×, 10×, 25×, 40×, 63×
Strain free plan achromatic objective 25×, 40×, 63×
Nosepiece: Backward quadruple nosepiece, Center adjustable
Analyzer: Rotatable analyzer with gradation 0°-90°
Bertrand Lens: Bertrand lens, Sliding in/out of optical path
Optical Compensator: λ Slip (first class red), 1/ 4λ Slip, Quartz wedge
Revolving Round Stage: Diameter Φ160mm, Graduated in 1° increments, Minimum resolution 6’ when using vernier scale
Condenser: NA1.25 Abbe condenser with iris diaphragm & filter
Focusing: Coaxial coarse & fine adjustment, Range 28mm, Fine division 0.002mm
Polarizer: 360°rotatable
Illumination:
12V/ 20W Halogen Lamp, Brightness Adjustable (Transmitted illumination)
12V/ 50W Halogen lamp, Brightness adjustable (Reflected illumination)
Accessories: Micrometer
