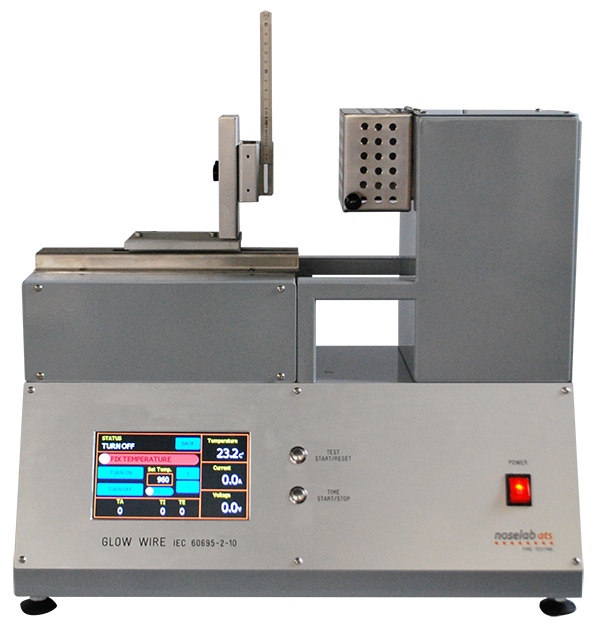

Motor driven carriage sliding system for the test-sample advancement
Stainless steel sample holder mm 70x15x120
Device with weights to apply the required contact pressure between the test specimen and the heating element
Type K thermocouple (mm1.0)
4 mm dia. NiCr wire
Touch screen control board showing both wire temperature, time of test and Voltage
Programmable test sequence time
Starting button for the motor-driven carriage
Collecting tray
Safety guard of the incandescent thread
Wood tablet and cotton paper
Apply the apparatus under a fume extraction hood or inside a laboratory hood equipped for handling.
Main features
Motor-driven carriage to move the specimen support at a speed range of 10 - 25 mm/sec
1 N ± 0.2 N pre-loaded contact force of the test specimen against the glowing wire
General
Overall Dimensions: mm 500 x 400 x 570 h
Weight: 32 kg
Power consumption: 700 W
Maximum test temperature: 960 ±15° C
Power supply: 230V, 50Hz
