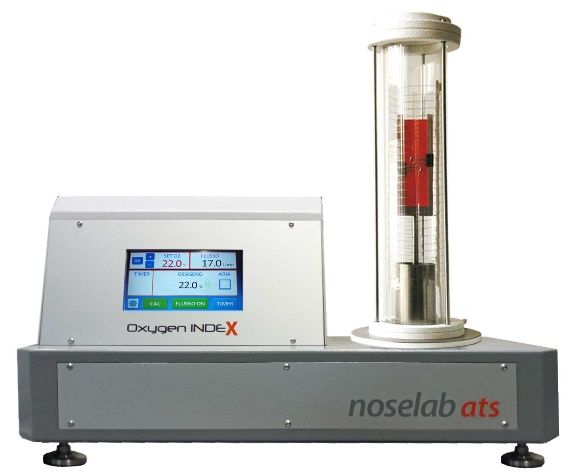

NOSELAB ATS EA05 ດັດຊະນີອົກຊີເຈນອຸນຫະພູມສູງ
Technical Features
Pyrex column with built-in heating resistance complete with outer safety glass column
Detection of O₂ percentage through paramagnetic transducer (O₂ accuracy <0.1%)
Direct reading measurement 7" colour display for oxygen %, mixture flux l/min
Automatic control of the flow with mass flow
Microprocessor-governed operations
Air addition to save consumption in O₂ high concentration mixtures
Automatic calibration (0 and 100%)
Propane gas regulation and cut-off valve
Specimen surface temperature indicator complete with detection probe
Inconel steel detection thermocouple
Thermoregulator for the mixture pre-heating temperature control up to 400 °C
Thermoregulator for temperature control inside the glass column
PID regulators
The test of material takes place in a heated column in which both the incoming gas and the gas passing up the column are heated, providing information on the effect of a range of temperatures on the OI value and a better understanding of material behaviour over a temperature range
Supplies
Power 230 V 50 Hz single phase
Oxygen
Nitrogen
Propane
3 bar dry industrial air
Generals
Dimensions: 300 × 650 × 700 mm
Weight: 20 kg
Power: 230 V, 50 Hz
Reference Standards
ASTM D 2863
ISO 4589 -3
