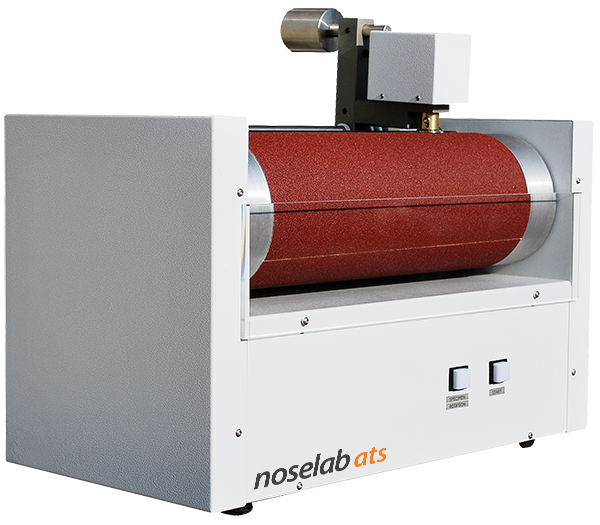

Metal frame painted in epoxy
Equipped with a rolling support for abrading paper, 150 mm Ø, at 40 r.p.m. speed
Specimen holder mechanism based on an automatic system for lateral travel, equipped with a support for additional weight
Micrometric adjusting of calibration
Total travel of the specimen 40 meters
Counterweight to the reduction from 10 N to 5 N on audition
Supply includes
n.1 abrading paper to be calibrated
n.1 device for specimen rotation during the travel
n.1 5 N counterweight
n.1 calibrating device for the abrading paper (one piece)
Overall dimension 600x300x400h mm
Weight 20 kg (approx.)
Power supply 230V, 50Hz, single phase, 0.5kVA
Calibrating system for the abrading paper
Standard compound sheet according to reference standards (Code 10075010)
Calibrating device for the abrading paper (spare part) (Code 10075006)
Accessories and spare parts
Circular Die 16mm for producing a specimen, including stem adapter to a drill
Speed for cut as standard 1000 rpm
Abrading paper according to reference standards (to calibrate)
Reference standards
DIN ISO 4649 (replaces DIN 53516)
ASTM D 5963
