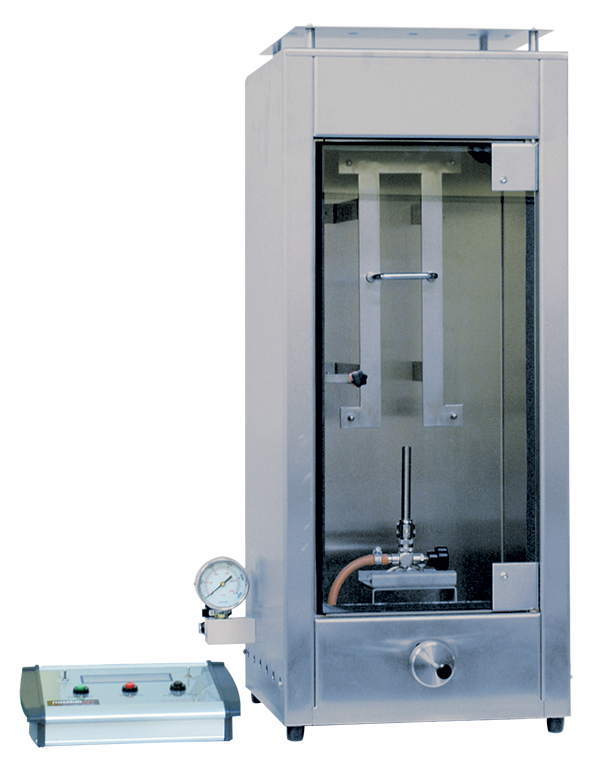

NOSELAB ATS AA05 Vertical Test Cabinet - Flammability test
Technical Features
AISI 304 stainless steel structure
Sledge for burner positioning
Safety glass door
Bunsen burner diameter 9.5 mm complete with safety valve
Pressure gauge
Burner positioning shaft
Tool for flame height measurement
330 × 140 mm specimen support for 305 × 75 mm specimens having thickness up to 25 mm
Drops collecting tray
K-type thermocouple for flame temperature detection to connect the digital control device
Digital TemoCronoTimer for detection of minimum flame temperature 850 °C
Digital TemoCronoTimer for 12 or 60 seconds exposure to flame
Digital TemoCronoTimer for flame duration on the specimen after the burner is withdrawn
Digital TemoCronoTimer for flame time of the drops
Recording of flame and glowing times after flame exposure with manual control
Dimensions 330 × 330 × 787 h mm
Weight 18 kg
Power supply 230 VAC 50 Hz single phase
Gas supply methane
Standards
ABD 0031
AITM 2.002
BSS 7230
FAR Part 25 Appendix F Part 1
FTM 191A method 5903
ASTM D6413
