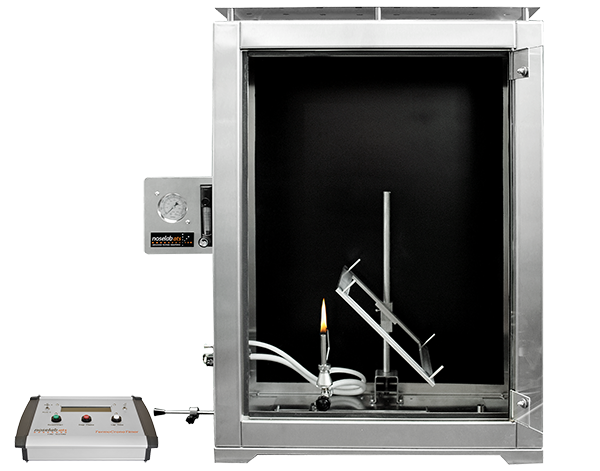

NOSELAB ATS AA03 ການທົດສອບຄວາມໄວໄຟແນວຕັ້ງ
Benchtop digital programmable TermoCronoTimer
Flame exposure time
Flame duration time on the specimen after the burner is removed
Flame duration time of the drops
Manual input of the flame and glowing times after exposure to the flame
Temperature detection mode (minimum flame temperature +850 °C)
K-type thermocouple connector for flame temperature detection
AISI 304 stainless steel structure with black interior panel
Safety glass door
Sledge to position the burner
Bunsen burner 10 mm diameter complete with safety valve
Inlet gas flow pressure gauge
U-shaped sample support 330 × 101 mm for horizontal tests (sample 305 × 76 mm)
Double frame sample support 254 × 254 mm for tests at 45°
Supporting shaft
Measuring tool with one part to indicate the internal cone height of the flame (approx. 22 mm) and another part to indicate the tip height of the flame (approx. 38 mm)
Drops collecting tray
Dimensions 610 × 330 × 787 h mm
Weight 25 kg
Power supply 230 VAC, 50 Hz, 1.6 kVA
Gas supply methane
Standards
AITM 2.002
BSS 7230
FAR 25.853 Part 1
FTM 191A method 5903
