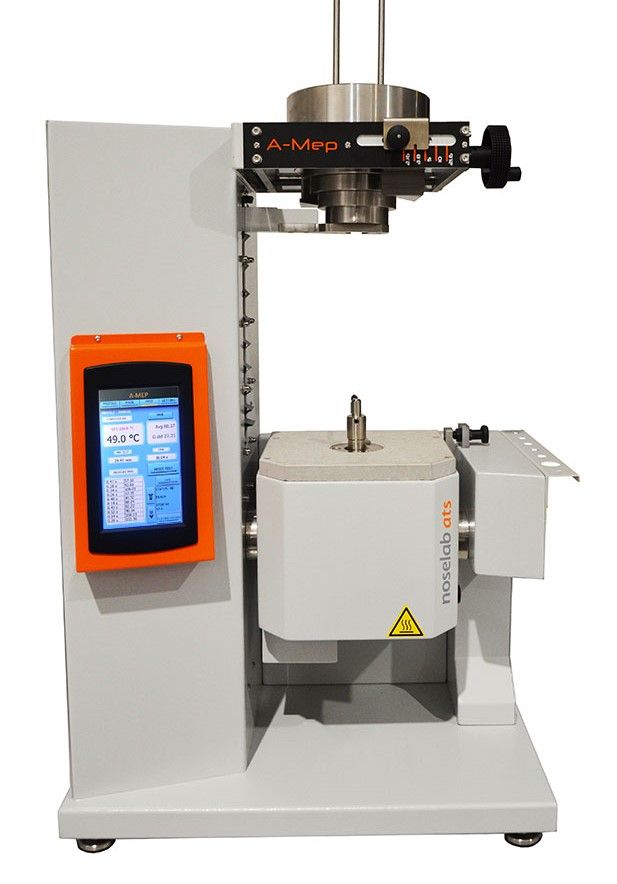

Integrated microprocessor for test management
PID electronic thermoregulation system with microprocessor accuracy 0.1°C, working temperature 80° ÷ 400°C
Configuration of the test parameters (temperature, pre-heating time, space of acquisition, density of the material, add-on weight) 28 preset conditions
Detection of 10 to 50 measurements each sample
Automatic weight lifter (4 weights) fully governed by the control electronics in order to perform easily material pressing, pre-heating with or without add-on weight, repeatability of the test starting position
Masses to reach 2.16, 3.8, 5.0, 10.0, 21.6 kg add-on weights
Thermal stability ±0.2°C in the test area
Test chamber Ø 9.55 mm, steel (52/55 HRC)
Piston Ø 9.474 mm, height of the pressing part 6.35 mm, steel (45/50 HRC), equipped with thermally insulated guiding double collar, weight 0.325 g
Die inner Ø of the hole 2.095 mm, length 8 mm, steel (60/65 HRC)
The instrument is equipped with a cutting device of the extruded material, governed by an electronic timer which activates the blade automatically according to preset times, or operated manually any time, with a push-button
Tilting furnace for easy cleaning of heating chamber
Heating system
USB port for PC connection
Dimensions 600 x 430 x 860/900 h mm
Weight approx. kg 80
Power supply 230V, 50Hz, 0.5 kVA
Touch screen interface, colour LCD
Settings and data management
Display of the last test performed
Facility to reject odd values, with reference to either other determinations, or tested material, or both
Reference standards
ASTM D1238 Method A-B
ASTM D2116
ASTM D3159
ASTM D3364
ISO 1133
UNI 5640
