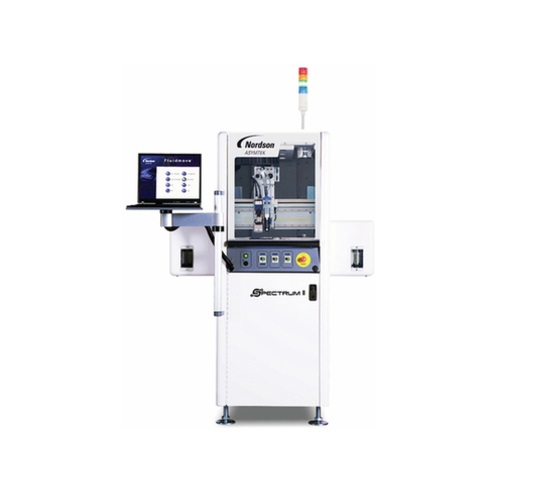

Nordson Spectrum II S2-900 ລະບົບການແຈກຢາຍນ້ໍາທີ່ຊັດເຈນ (1 m/s (40 in./s))
Specifications
Motion System
Z repeatability: ±15 µm (0.0006 in.), 3 sigma
X-Y repeatability: ±15 µm (0.0006 in.), 3 sigma
X-Y acceleration: 1 g peak
X-Y velocity: 1 m/s peak (40 in./s)
X-Y-Z encoder resolution: 1 µm
Single Applicator — Wet Dispensing Accuracy & Repeatability
Cp ≥ 1.0: ±35 µm (0.0016 in.)
Cpk ≥ 1.0: ±40 µm (0.0016 in.)
Z-gap Performance: Z-Gap Repeatability: ±15 µm (0.0006 in.), 3 sigma
Minimum Z-Gap Capability: 50 µm (0.002 in.)
Dispense Area (X-Y): 339 x 410 mm (13.3 x 16.1 in.)
Conveyor
Min. board/carrier width: 34 mm (1.3 in.)
Max. board/carrier thickness: 12 mm (0.5 in.)
Max. board/carrier length:
One station: 340 mm (13.4 in.)
Three stations: 320 mm (12.6 in.)
Min. board/carrier length: 25 mm (1.0 in.)
Max. board/carrier width:
Single lane: 535 mm (21.1 in.)
Dual lane: up to 228 mm (9.0 in.)
(configuration dependent)
Conveyor overboard clearance: 30 mm (1.2 in.) standard
Computer: Laptop
Software: Fluidmove® fluid dispensing software
