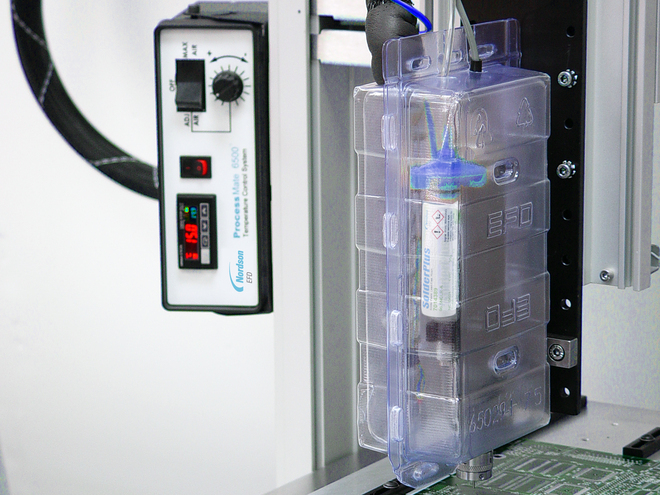

Nordson ProcessMate 6500 ຫນ່ວຍຄວບຄຸມອຸນຫະພູມ

Cabinet Size: 18.9W x 7.1H x 15.9D cm (7.5W x 2.8H x 6.3D")

Weight: 1.0 Kg (2.2 Lb)

Input Voltage: Selectable 100/120/220 VAC

Input Frequency: 50-60 Hz

Input Power: 14/12VA

Internal Voltage: 24 VDC

Standard Air Input: 2.75 to 7.5 bar (40 to 110 psi)

Air Usage: 55 L/min (2 CFM)

Temperature Control: ±0.1° C from 10° to 40° C (50° to 104° F)

Ambient Operating Conditions

 + Temperature: -10° to 55° C (14° to 131°F)

 + Humidity: 85% RH at 30° C (86° F) non-condensing

 + Height above sea level: 2000 meters (6,562 feet) maximum

Features

• Compact — Controls just the process, eliminating the need for machine enclosures and replaces large environmental control systems that waste critical floor space.

• Cost effective — Operating costs are only pennies per day compared to big, bulky machine enclosures and/or thermal facility controls. Localized temperatures within the ProcessMate TCU are reached within minutes instead of hours.

• Precise process control — Deposition process chamber environment is maintained to within ±0.1° C.

• Easy to install, adjust and use — Easy to

implement on automated, hand-held, benchtop and cartridge dispensing systems. A customized line of static dissipative enclosures is available.
