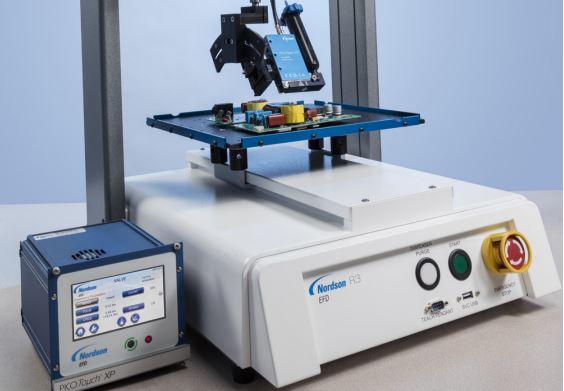

Nordson PICO Toµch XP ຜູ້ຄວບຄຸມ

Cabinet size: 14.2w x 13.3h x 16.8d cm (28 Hp x 3U) (5.59W x 5.25H x 6.61D")

Weight: 2.6 kg (5.5 lb)

Time range: 100 µs to 9.9999 s

Input AC (to power supply): 100–240 VAC, 2.0 Amp, 50/60Hz

Output DC (from power supply): 24 VDC, 6.25 Amp

Heater output voltage: 24 VDC, 30 W maximum

Feedback circuit: 0–24 VDC

Cycle initiate: 15–24 VDC

Approvals: CE, UKCA, TUV, RoHS, WEEE, China RoHS

Benefits

• Intuitive, easy-to-use touchscreen interface for precise control of PICO Pµlse XP jet valve

• Micron (µm) level stroke adjustment

• Fine-tune jetting performance for a wide range of applications
