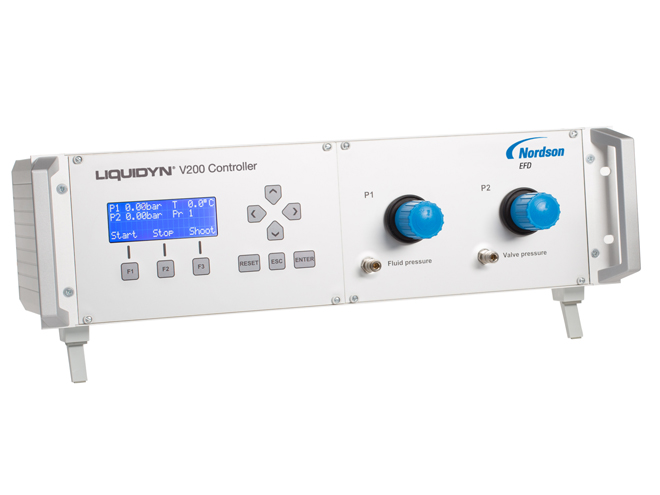

Nordson Liquidyn V200 Valve Controller

Cabinet size: 45.0W x 12.5H x 25.0D cm (17.72W x 4.92H x 9.84D")

Weight: 5.5 kg (12.1 lb)

Cycle rate: Up to 280Hz

Time range: 2–9,999 ms

Electrical power input: 24 VDC, 2.5 Amp minimum

Electrical input connector: Lumberg KFV70

External power adapter: AC/DC power supply and power cord: 100–240 VAC, 50/60Hz, 1.4 Amp input; 24 VDC, 2.5 Amp, 60 W maximum output

Feedback circuit : 0 VDC (logical low); 24 VDC (logical high)

Input air pressure: 6.2–10.3 bar (90–150 psi)

Temperature control: 0–90° C (32–194° F)

Approvals: CE, UKCA, TUV, RoHS, WEEE, China RoHS

Features

• Programmable dispensing parameters - up to four programs

• Continuous shot operation up to 100Hz (P-Jet SolderPlus), 150Hz (P-Dot) and 280Hz (P-Jet)

• Continuous display of actual pressure and temperature readings

• Setpoint Counter sets the number of shots and shows the actual number of shots deposited

• PID heater control with digital display

• Two precision pressure regulators with digital display

• External trigger input via potential-free operation

• Digital display in English and German

Benefits

• High repeatability and high accuracy provide very consistent dispensing results for higher productivity.

• All programming functions and air pressure adjustments easily accessed on the front of the controller.

• Remote operation and monitoring functions facilitate integration with existing systems or programmable logic controllers (PLCs).
