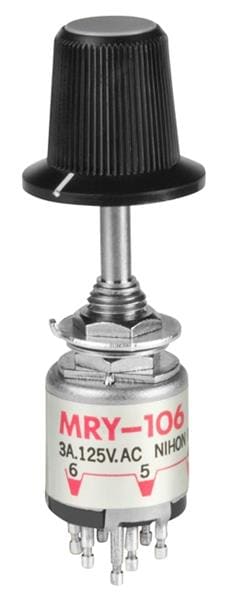

NKK Switches MRY106-CH ສະລິກສະວິດຫຼັກກວດ SP 6 POS SHAFT ACTR TURRET GRAY TIP KNOB

Actuator: Knob

Illuminated: Non-Illuminated

Index Angle: 60 deg

Index Stops: Adjustable

Contact Form: SP6T

Contact Style: Non-Shorting

Mounting Type: Panel Mount

Current Rating: 3 A, 2 A

Mounting Style: Panel Mount

Voltage Rating: 125 VAC, 30 VDC

Contact Plating: Silver

Number of Decks: 1 Deck

Termination Style: Turret

Voltage Rating AC: 125 VAC

Voltage Rating DC: 30 VDC

Number of Positions: 2 Position to 6 Position

Number of Poles per Deck: 1 Pole

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 10 C
