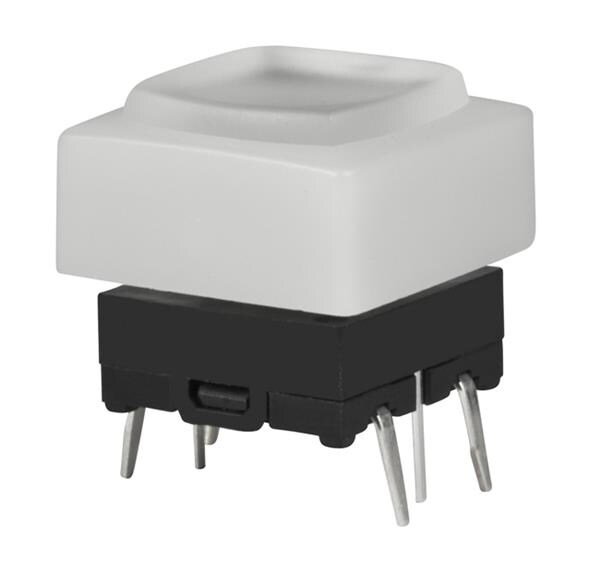

NKK Switches JB15LPE-BB ປຸ່ມສະຫນອງສະຕິກ OFF-(ON) PC MNT YLW LED WHT BUTN & FRAME

Life: 500000 Cycle

Color: Black

Width: 10 mm

Height: 4.2 mm

Length: 10 mm

Travel: 0.254 mm

Actuator: Square

Cap Color: White

Lamp Type: LED

Illuminated: Illuminated

Unit Weight: 3 g

Contact Form: SPST

Current Rating: 50 mA

Mounting Style: Through Hole

Contact Plating: Silver

Ground Terminal: No

Operating Force: 176 gf

Switch Function: OFF - (ON)

Termination Style: Solder Pin

Voltage Rating DC: 24 VDC

Illumination Color: Yellow

Mounting Direction: Straight

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 25 C
