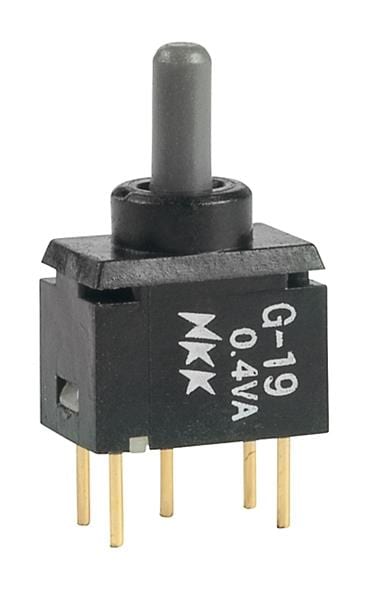

NKK Switches G19AP ປຸ່ມສະແກນປິດກະທົບຂະໜາດນ້ອຍສຸດທີ່ມີການປິດກັນນ້ຳ Process Sealed Ultra-Miniature Toggles SPDT ON-OFF-(ON)

Life: 50000 Cycle

Actuator: Toggle

Illuminated: Non-Illuminated

Unit Weight: 1.374 g

Bushing Size: Unthreaded

Contact Form: SPDT

Power Rating: 400 mVA

Terminal Seal: Epoxy

Current Rating: 400 mA

Mounting Angle: Vertical

Mounting Style: PCB Mount

Contact Plating: Gold

Switch Function: ON - OFF - (ON)

Contact Material: Phosphor Bronze

Housing Material: Polyamide, Glass Fiber Reinforced

Termination Style: Solder Pin

Voltage Rating AC: 28 VAC

Voltage Rating DC: 28 VDC

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 25 C
