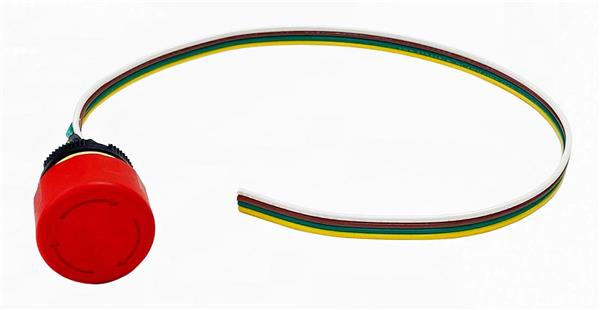

NKK Switches FF0126BACAEA01-WL ປຸ່ມຫຼັກສຸດກົດສຸດກົດ DPST 25mm ມີລູກສອນ W/ 4 RIBBON 12in WIRES CN2683

Life: 100000 Cycles

Height: 30.6 mm

Actuator: Plunger

IP Rating: IP65

Illuminated: Non-Illuminated

Contact Form: DPST

Panel Cutout: 16.2 mm

Actuator Style: Round

Current Rating: 500 mA

Mounting Style: Panel Mount

Actuator Length: 25 mm

Contact Plating: Gold

Panel Thickness: 0.8 mm to 4.5 mm

Switch Function: ON - OFF

Housing Material: Polyamide (PA)

Actuator Material: Polybutylene Terephthalate (PBT)

Termination Style: Solder Lug

Voltage Rating DC: 24 VDC

Maximum Operating Temperature: + 60 C

Minimum Operating Temperature: - 25 C
