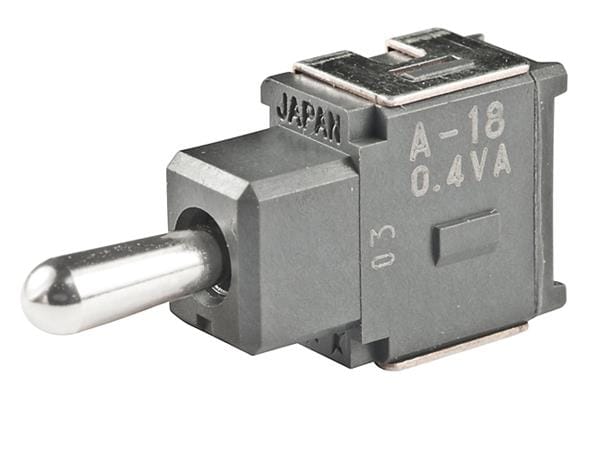

NKK Switches A18JH ປຸ່ມສະຫງວນຍ່ອຍປອດແພດຂອງກະບອກ (ON)OFF(ON) .248 BAT RIGHT ANGL PC .4VA

Life: 50000 Cycle

Actuator: Standard

Illuminated: Non-Illuminated

Contact Form: SPDT

Power Rating: 400 mVA

Terminal Seal: Sealed

Actuator Style: Bat

Current Rating: 100 mA

Mounting Angle: Right Angle

Mounting Style: Through Hole

Contact Plating: Gold

Number of Poles: 1

Switch Function: (ON) - OFF - (ON)

Contact Material: Brass

Housing Material: Polyamide, Glass Fiber Reinforced

Termination Style: Pin

Voltage Rating AC: 28 VAC

Voltage Rating DC: 28 VDC

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 30 C
