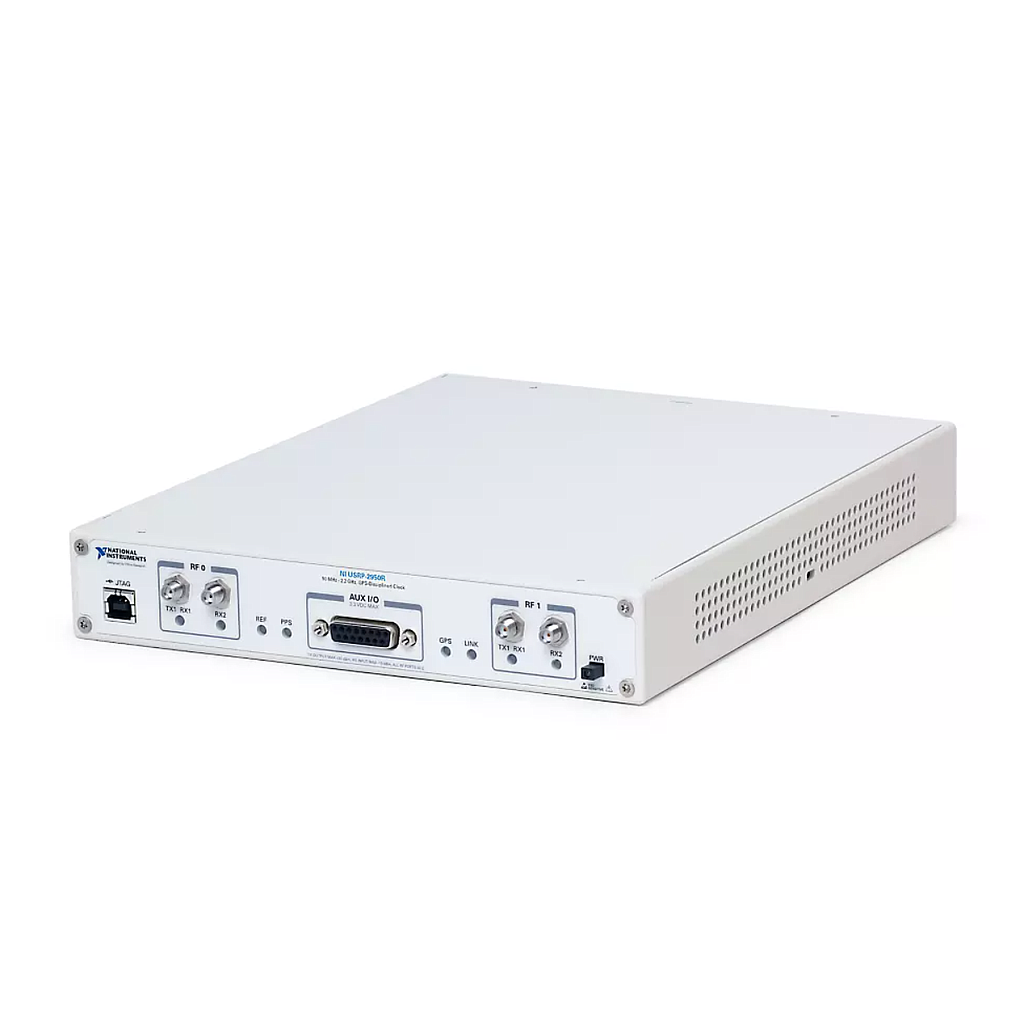

NI USRP-2950 ຊອບແວ USRP ກໍານົດອຸປະກອນວິທະຍຸ (50 MHz ~ 2.2 GHz, 2-Channel, 40 MHz RF-Transceiver)
ຜູ້ຜະລິດ: NI Model: USRP-2950 P/N: 783150-01 - ຕິດຕໍ່ພົວພັນ
RF Frequency Range: 50 MHz to 2.2 GHz
RF Transceiver Instantaneous Bandwidth: 40 MHz
FPGA: Kintex-7 410T
Number of Input Channels: 2
umber of Output Channels: 2
Bus Connector: MXIe Ethernet
GPSDO: Yes
Provides a software-defined RF architecture to rapidly design, prototype, and deploy wireless systems with custom signal processing.
The USRP Software Defined Radio Device is a reconfigurable RF device that includes a combination of host-based processors, FPGAs, and RF front ends. The USRP Software Defined Radio Device include options that range from lower cost options with fixed FPGA personalities to high-end radios with a large, open FPGAs and wide instantaneous bandwidth. These devices can be used for applications such as multiple input, multiple output (MIMO) and LTE/WiFi testbeds, SIGINT, and radar systems.
Datasheet
