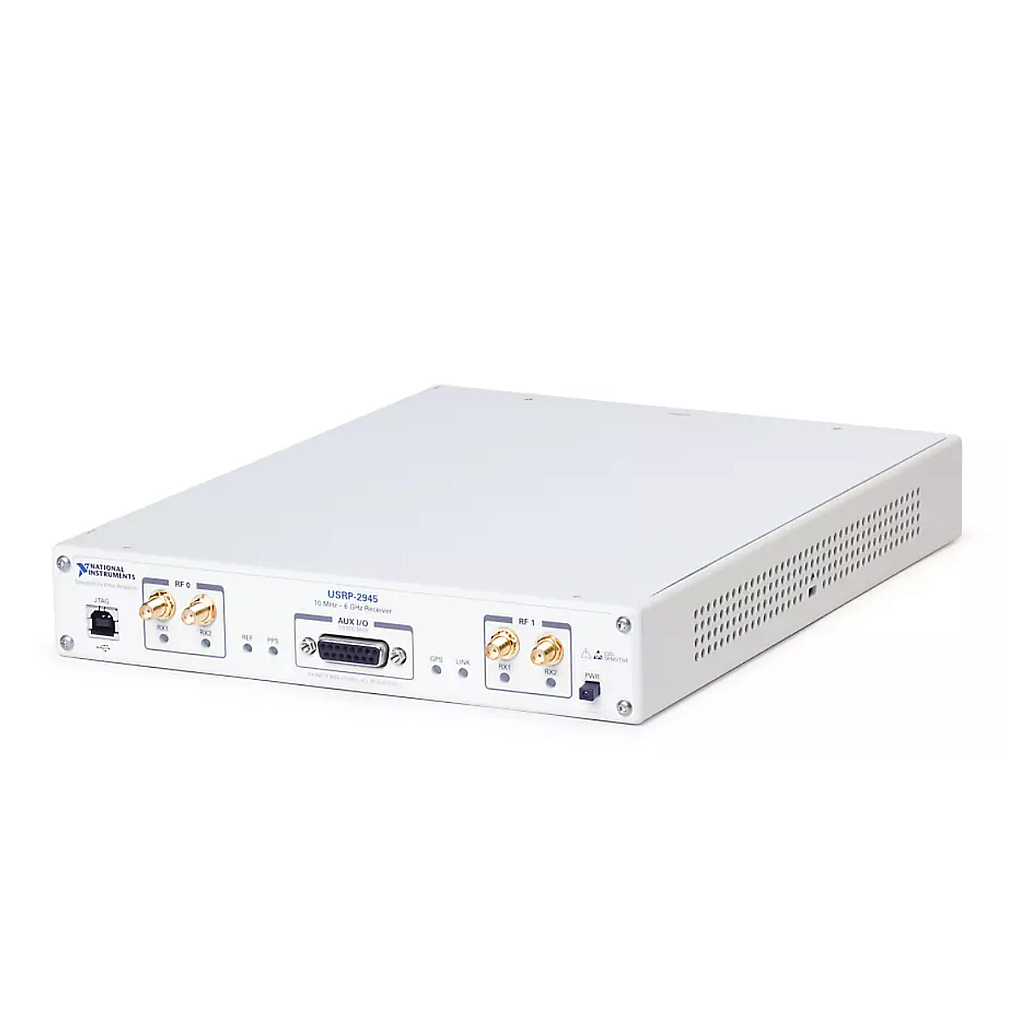

NI USRP-2945 ຊອບແວ USRP ກໍານົດອຸປະກອນວິທະຍຸ (10 MHz ~ 6 GHz, 4-Channel)
ຜູ້ຜະລິດ: NI Model: USRP-2945 P/N: 785263-01 - ຕິດຕໍ່ພົວພັນ
RF Frequency Range: 10 MHz to 6 GHz
RF Transceiver Instantaneous Bandwidth: 80 MHz
FPGA: Kintex-7 410T
Number of Input Channels: 4
umber of Output Channels: 0
Bus Connector: MXIe Ethernet
GPSDO: No
Provides a software-defined RF architecture to rapidly design, prototype, and deploy wireless systems with custom signal processing.
The USRP Software Defined Radio Device is a reconfigurable RF device that includes a combination of host-based processors, FPGAs, and RF front ends. The USRP Software Defined Radio Device include options that range from lower cost options with fixed FPGA personalities to high-end radios with a large, open FPGAs and wide instantaneous bandwidth. These devices can be used for applications such as multiple input, multiple output (MIMO) and LTE/WiFi testbeds, SIGINT, and radar systems.
Datasheet
