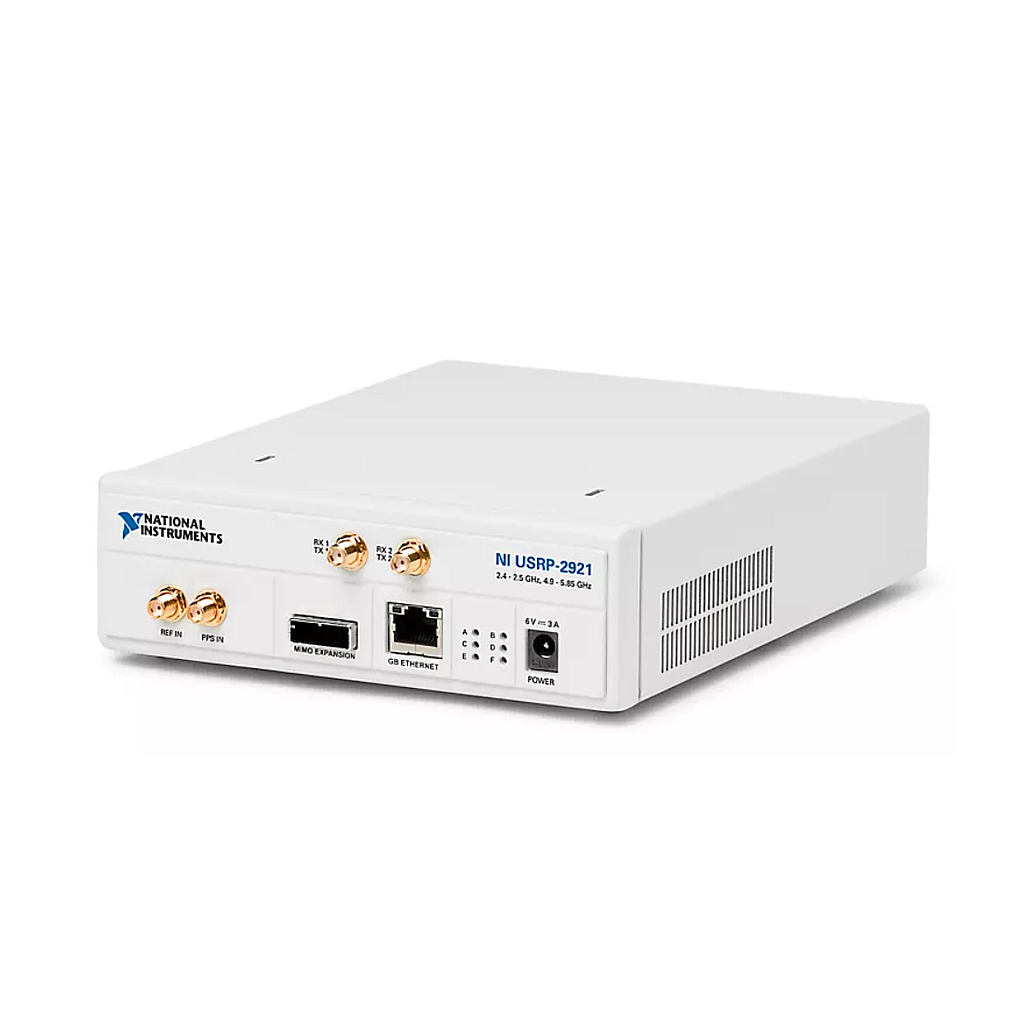

NI USRP-2921 ຊອບແວ USRP ກໍານົດອຸປະກອນວິທະຍຸ (2.4~2.5GHz/4.9~5.9GHz, 1-Channel)
ຜູ້ຜະລິດ: NI Model: USRP-2921 P/N: 781907-01 - ຕິດຕໍ່ພົວພັນ
RF Frequency Range: 2.4 GHz to 2.5 GHz, 4.9 GHz to 5.9 GHz
RF Transceiver Instantaneous Bandwidth: 20 MHz
FPGA: —
Number of Input Channels: 1
umber of Output Channels: 1
Bus Connector: Ethernet
GPSDO: No
Provides a software-defined RF architecture to rapidly design, prototype, and deploy wireless systems with custom signal processing.
The USRP Software Defined Radio Device is a reconfigurable RF device that includes a combination of host-based processors, FPGAs, and RF front ends. The USRP Software Defined Radio Device include options that range from lower cost options with fixed FPGA personalities to high-end radios with a large, open FPGAs and wide instantaneous bandwidth. These devices can be used for applications such as multiple input, multiple output (MIMO) and LTE/WiFi testbeds, SIGINT, and radar systems.
