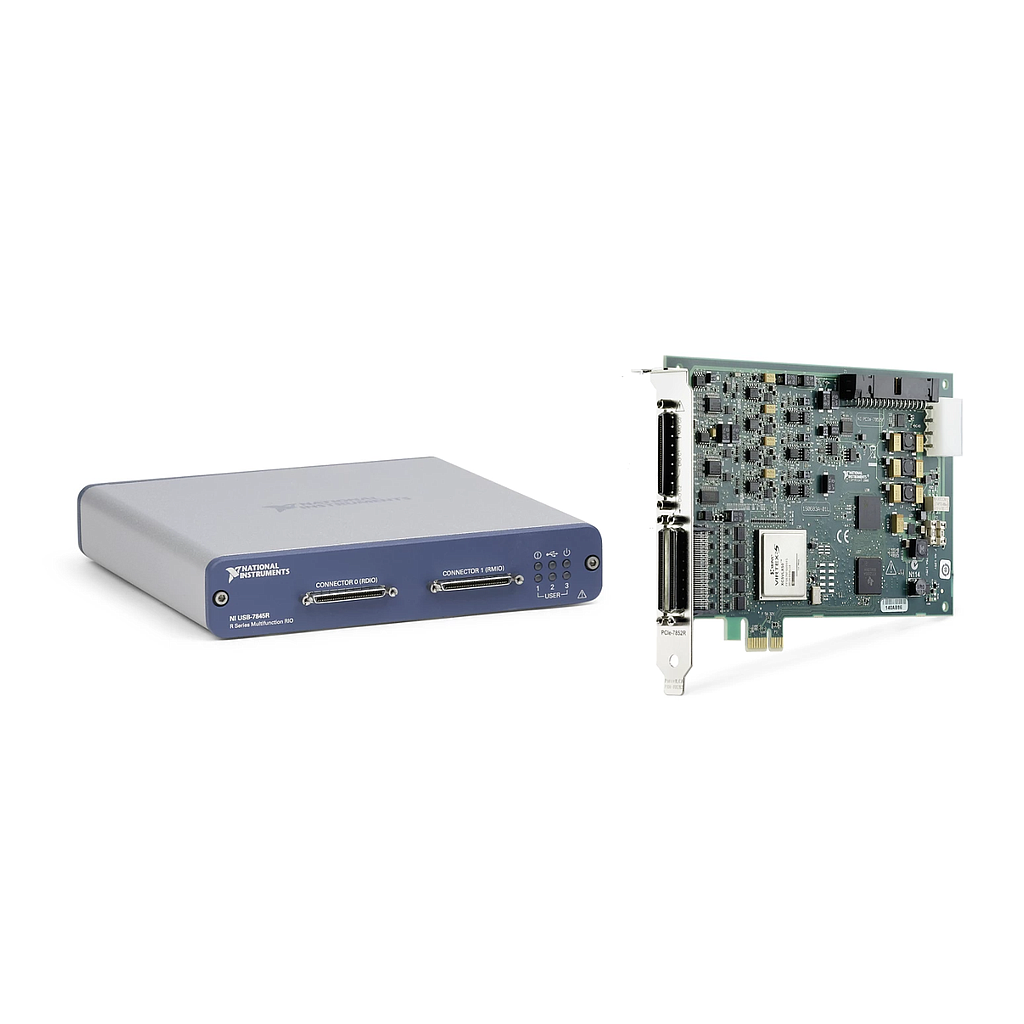

NI USB-7855 Multifunction I/O ອຸປະກອນທີ່ສາມາດປັບຕັ້ງຄ່າໄດ້ (Kintex-7 70T, 1 MS/s, -10V ~ 10V)
ຜູ້ຜະລິດ: NI Model: USB-7855 P/N: 782915-02 - ຕິດຕໍ່ພົວພັນ
Bus Connector: USB 2.0
FPGA: Kintex-7 70T
Maximum Sample Rate: 1 MS/s
Number of Bidirectional Digital Channels: 48
Analog Input Voltage Range: -1 V to 1 V -2 V to 2 V -5 V to 5 V -10 V to 10 V
Digital I/O Logic Levels: 1.2 V 1.5 V 1.8 V 2.5 V 3.3 V
Maximum Clock Rate : 80 MHz
Enclosed: No
Controls I/O signals and provides a user-programmable FPGA for onboard signal processing and flexible system timing and synchronization.
Multifunction Reconfigurable I/O Devices feature a dedicated A/D converter (ADC) per channel for independent timing and triggering. This design offers specialized functionality such as multirate sampling and individual channel triggering, which are outside the capabilities of typical DAQ hardware. You can customize these devices with the LabVIEW FPGA Module to develop applications requiring precise timing and control such as hardware-in-the-loop (HIL) testing, custom protocol communication, sensor simulation, and high-speed control.
Datasheet
