Shutdown: No Shutdown
Amplifier Type: Low Noise Precision Operational Amplifier

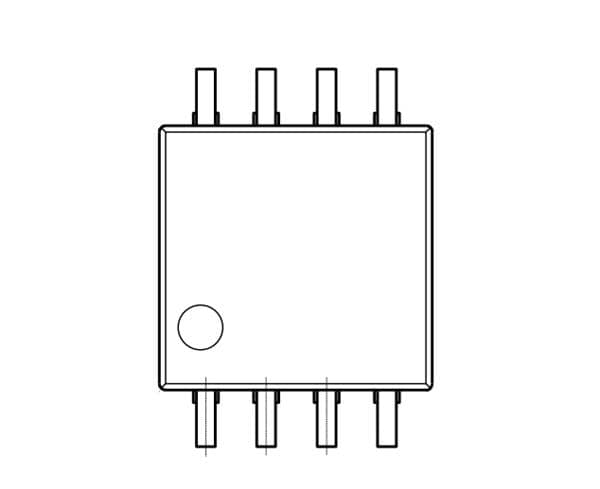

Mounting Style: SMD/SMT
SR - Slew Rate: 700 mV/us
THD plus Noise: 0.002 %
Number of Channels: 1 Channel
Supply Voltage - Max: 36 V, 18 V
Supply Voltage - Min: 4.5 V, 2.25 V
Ib - Input Bias Current: 500 pA
Operating Supply Current: 760 uA
Vcm - Common Mode Voltage: Negative Rail to Positive Rail - 2 V
Ios - Input Offset Current: 500 pA
Vos - Input Offset Voltage: 10 uV
Maximum Dual Supply Voltage: 18 V
Minimum Dual Supply Voltage: 2.25 V
GBP - Gain Bandwidth Product: 1 MHz
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
In - Input Noise Current Density: 0.2 pA/sqrt Hz
en - Input Voltage Noise Density: 8 nV/sqrt Hz
CMRR - Common Mode Rejection Ratio: 115 dB
