Maximum Number of Single-Ended Analog Input Channels: 0
Maximum Number of Differential Analog Input Channels: 8
Maximum Sample Rate: 50 kS/s/ch
Analog Input Resolution: 24 bits
Measure Current: -20 mA to 20 mA
Analog Input Isolation: 250 Vrms Ch-Ch Isolation
Front Connection Type: Screw Terminal
Conformal Coated: No
Enclosed: No

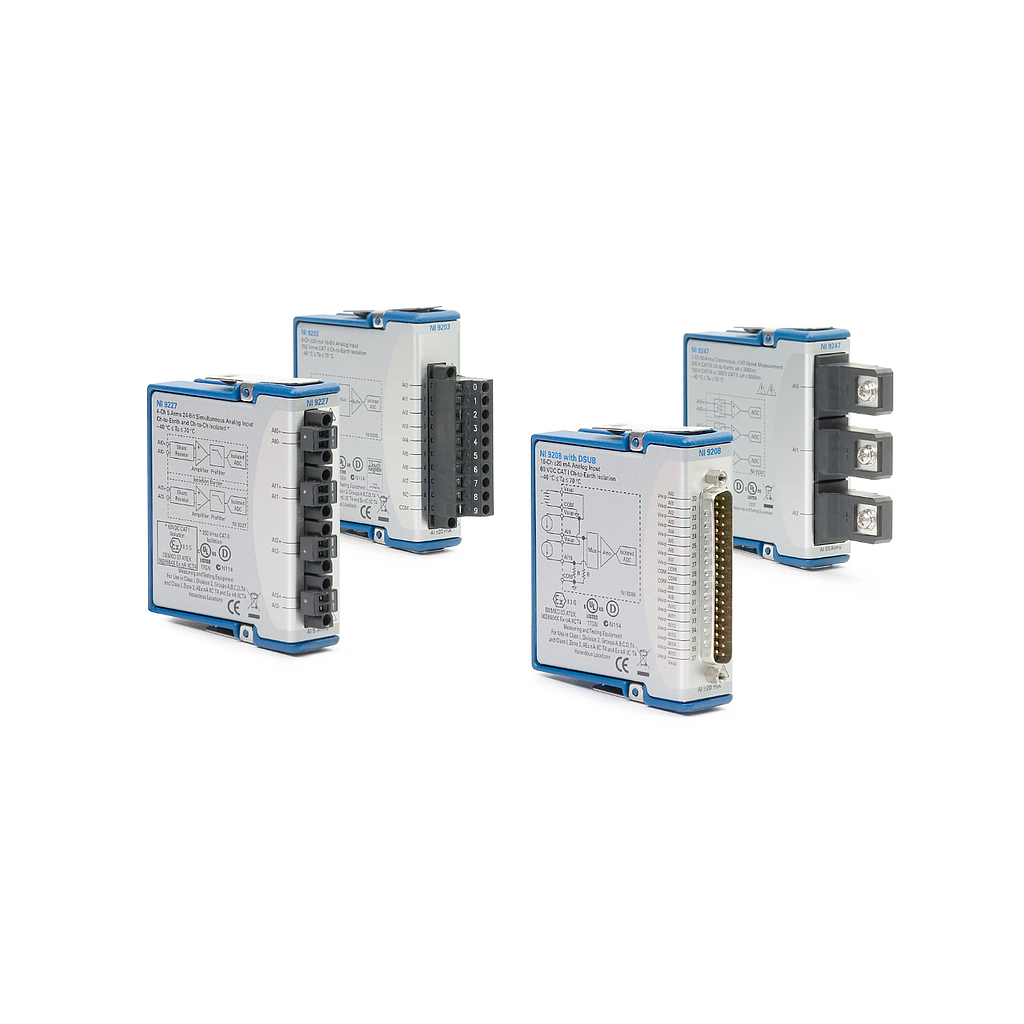

Provides current measurements for CompactDAQ and CompactRIO systems.
The C Series Current Input Module features programmable input ranges, variable connectivity options, and built-in noise rejection. You can also choose from options with built-in anti-aliasing filters or high-channel density to reduce the number of modules needed. The C Series Current Input Module supports safety features, certifications, input ranges, overvoltage ranges, and connectivity for applications such as power quality monitoring and metering, utility pole-mounted smart switches, utility pole-mounted smart grid reclosers, substation merging units, industrial machine measurements, health monitoring, predictive maintenance and prognostics, and phasor measurement units (PMUs). The C Series Current Input Module includes the NI-DAQmx driver and configuration utility that simplify configuration and measurements. NI-DAQmx supports NI programming environments as well as Python, ANSI C, C#.NET, and MathWorks MATLAB® software.
Datasheet
