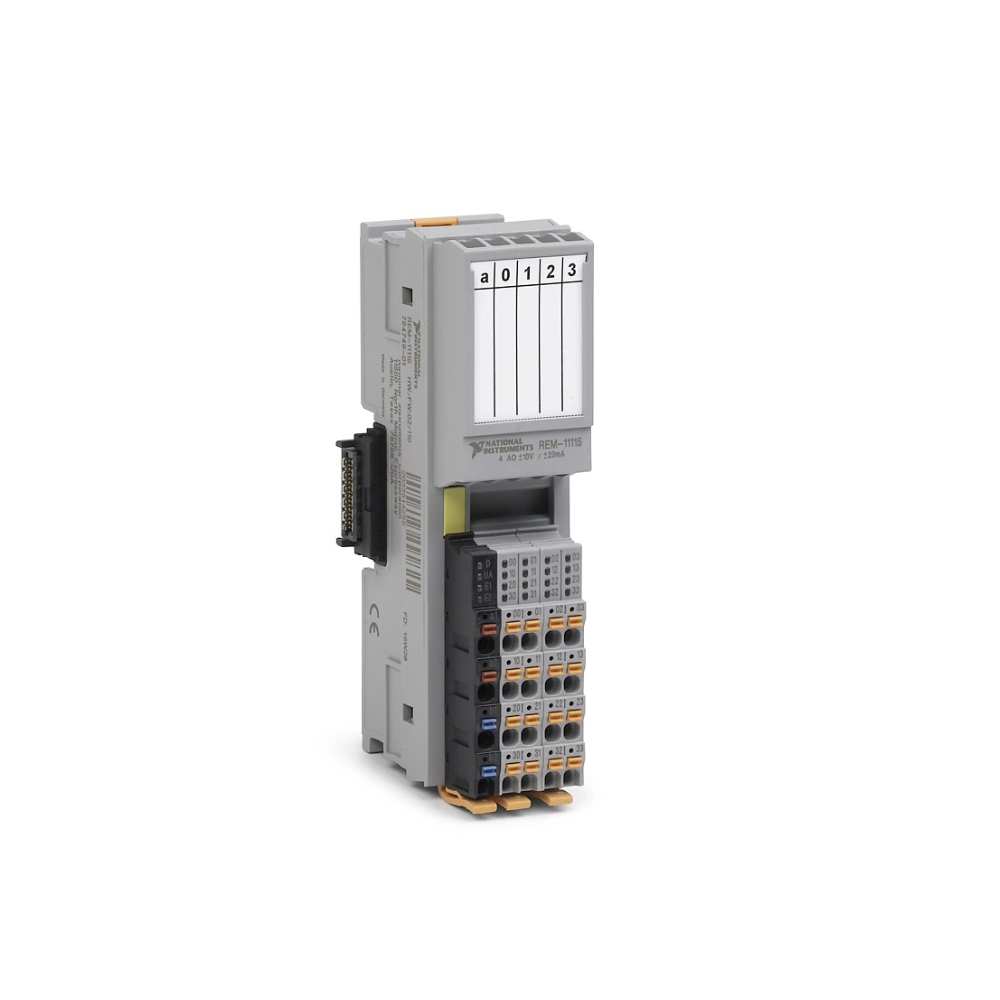

NI REM-11115 ໂມດູນຜົນຜະລິດອະນາລັອກສຳລັບ I/O ໄລຍະໄກ (4-Channel, +/-10v or +/-20MA, 16-Bit)

Number of outputs: 4

D/A resolution: 16 bit

Representation of output values: 16 bits (15 bits + sign)

Process data update: 140 µs

Short-circuit and overload protection: Electronic

Transient protection: Suppressor diode

Current

Current output signal: 0 mA to 20 mA, 4 mA to 20 mA

Load/output load current output: ≤500 Ω

Precision: 0.1%, typical (of output range final value)

Voltage

Voltage output signal: 0 V to 5 V, -5 V to 5 V, 0 V to 10 V, -10 V to 10 V

Load/output load voltage output: >1 kΩ

Precision: 0.1%, typical (of output range final value)

Provides analog output channels for current or voltage for remote I/O systems. Remote I/O modules must be used with a supported NI real-time controller.

The Analog Output Module for Remote I/O features a 2-wire spring terminal connection, selectable output ranges (0 V to 10 V, ±10 V, 0 V to 5 V, ±5 V, 0 mA to 20 mA, 4 mA to 20 mA, and ±20 mA) output ranges, and short circuit proof outputs. A remote I/O system consists of an EtherCAT bus coupler and individual modules mounted on a DIN rail. You control the Analog Output Module for Remote I/O from a real‐time controller, such as a CompactRIO Controller or an Industrial Controller. You can use remote I/O hardware to add low‐cost I/O for simple tasks while your controller handles advanced tasks such as image processing, motion control, and high‐speed or specialty measurements.
