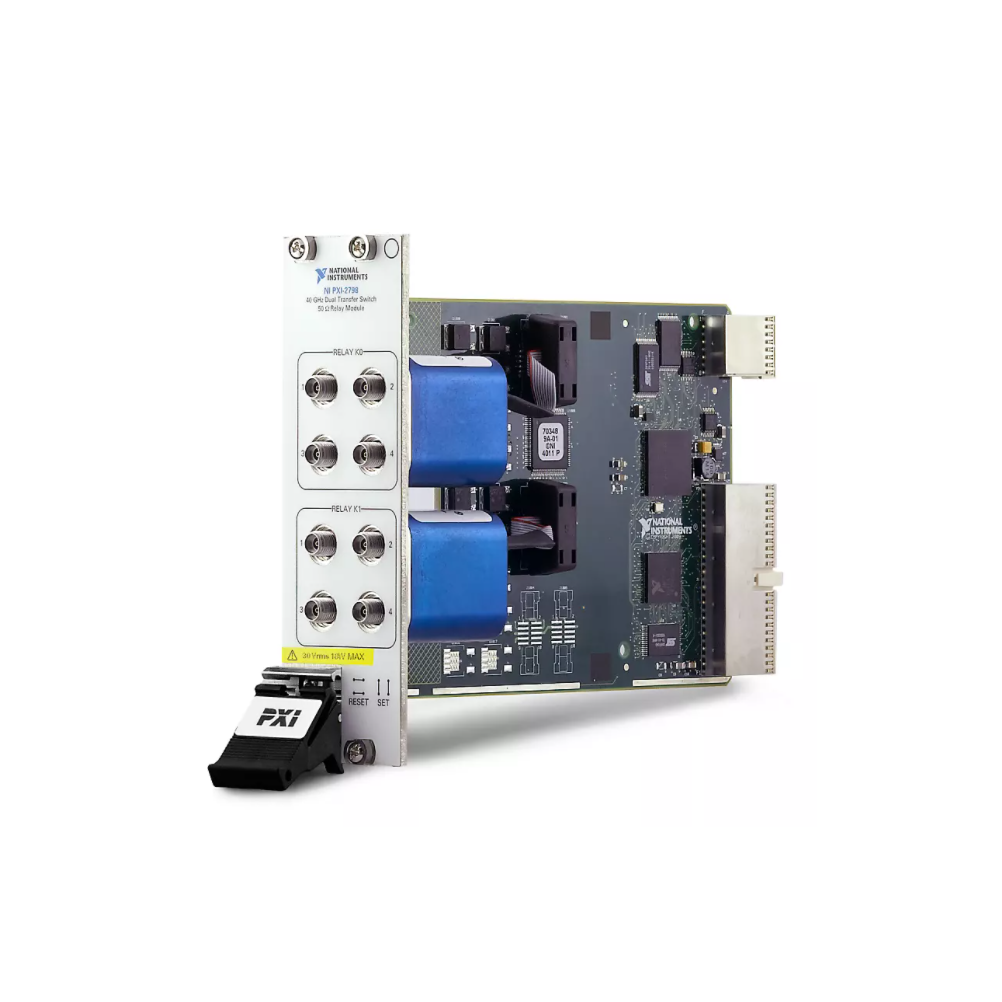

NI PXI-2798 PXI Transfer Switch Module (40 GHz, AC 30V/0.6A)
ຜູ້ຜະລິດ: NI Model: PXI-2798 P/N: 782358-01 - ຕິດຕໍ່ພົວພັນ
Switch Bandwidth: 40 GHz
Relay Type: Electromechanical
Maximum Carry Current AC: 0.6 A
Maximum Switching Voltage AC: 30 V
Scan Rate: 5 cycles/s
Bus Connector: PXI Hybrid
ລາຍລະອຽດ
Switches loads between two sources at frequencies up to 40 GHz.
PXI Transfer Switch Modules offer fast insertion times and low insertion loss to switch loads at RF frequencies. The modules also have 50 Ω impedance that helps minimize reflections of the RF signal and protect your instruments. You can program the PXI Transfer Switch Module using the NI-SWITCH instrument driver.
Datasheet
