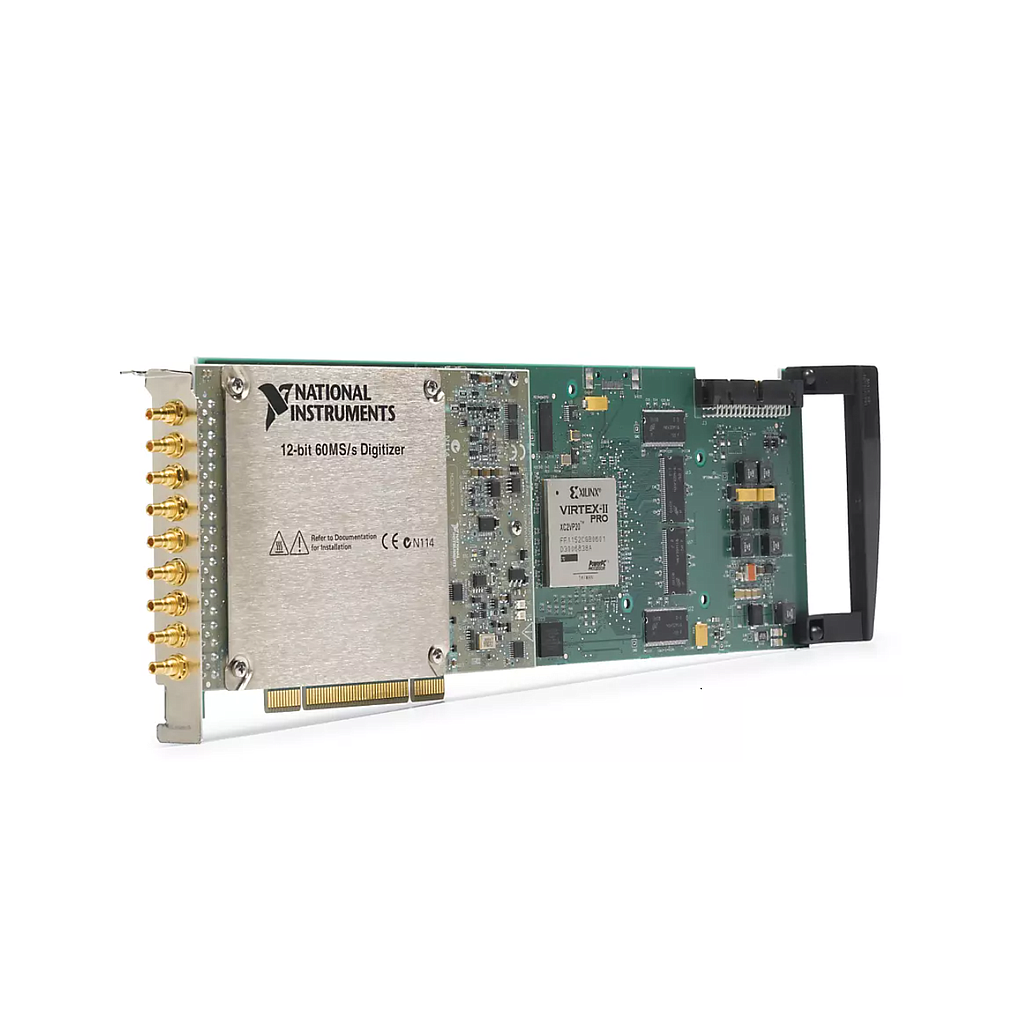

NI PCI-5105 ອຸປະກອນ Oscilloscope (PCI, 8 Channels, 60 MS/s, ±15 V, 512 MB)
ຜູ້ຜະລິດ: NI Model: PCI-5105 P/N: 779686-03 - ຕິດຕໍ່ພົວພັນ
Bus Connector: PCI
Oscilloscope Maximum Bandwidth: 60 MHz
Maximum Sample Rate: 60 MS/s
Number of Voltage Input Channels: 8
Analog Input Resolution: 12 bits
Oscilloscope Onboard Memory Size: 512 MB
Analog Input Voltage Range: -15 V to 15 V
Onboard Digital Downconverter: No
Enclosed: Yes
Acquires and analyzes time‐ and frequency-domain analog waveforms.
Oscilloscope Devices are flexible, software‐defined instruments that are versatile enough for both time‐ and frequency‐domain measurements and are offered in industry-standard form factors like PCI and USB. They feature up to eight channels that can sample at speeds up to 2 GS/s. The devices also feature numerous triggering modes, deep onboard memory, and driver software API that includes data streaming and analysis functions.
Datasheet
