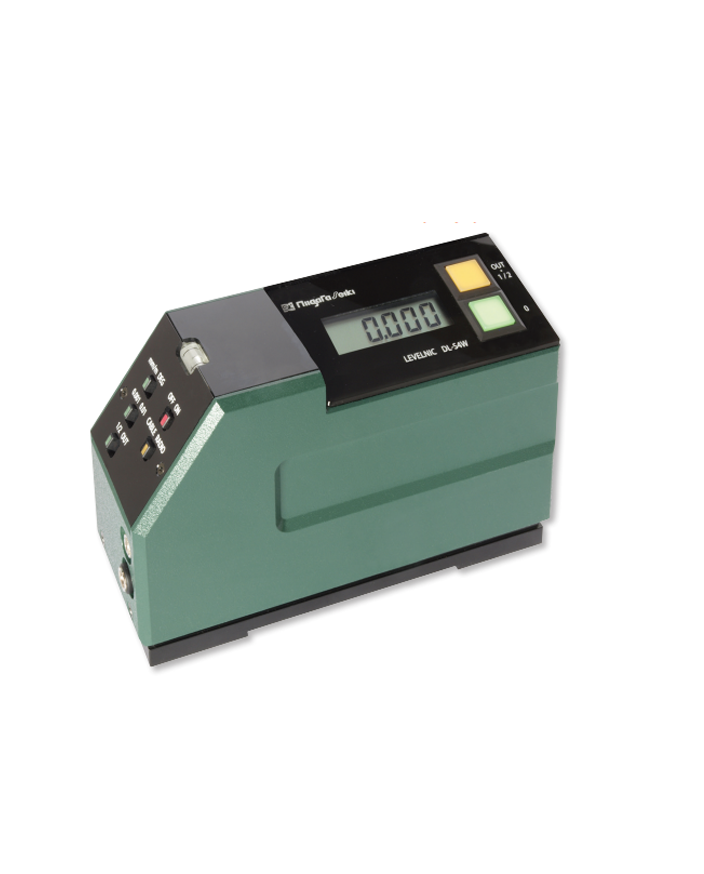

Niigata Seiki DL-S4W ລະດັບດິຈິຕອນ (± 5.00mm/m ± 0.286°)

Measuring Range: ± 5.00mm/m ± 0.286°

Resolution:

0.001 mm/m (0.0001°) within ±1.999 mm/m

0.01 mm/m (0.001°) beyond ±2 mm/m

Operating Temperature: 0~40°C

Accuracy:

Operating temperature 17~23°C:

±0.85% rdg within ±1.999 mm/m

±1.0% rdg beyond ±2 mm/m

Operating temperature 0~40°C:

±2.6% rdg within ±1.999 mm/m

±2.7% rdg beyond ±2 mm/m

Repeatability: Within ±0.005 mm/m (±0.0003°)

Communication Interfaces: RS-232C port, Bluetooth Class 1 (range 30–50 m)

Power Supply:

One 9V dry battery

One 8.4V 006P rechargeable battery

9V output AC adapter

Battery Life:

Zinc-carbon battery: approx. 12 hours (approx. 3 hours wireless use)

Alkaline battery: approx. 30 hours (approx. 3 hours wireless use)

Rechargeable battery: approx. 10 hours (approx. 4 hours wireless use)

Body Material: Aluminum alloy

Base Material: Cast iron

Overall Dimensions: L158 × W61 × H107 mm

Base Dimensions: L150 × W55 mm

Weight: 2.0 kg

Standard Accessories:

9V output AC adapter

Two 8.4V 006P rechargeable batteries

Battery charger

Shock resistant aluminum case

USB receiving unit

Dedicated display software

Warranty card

User manual
