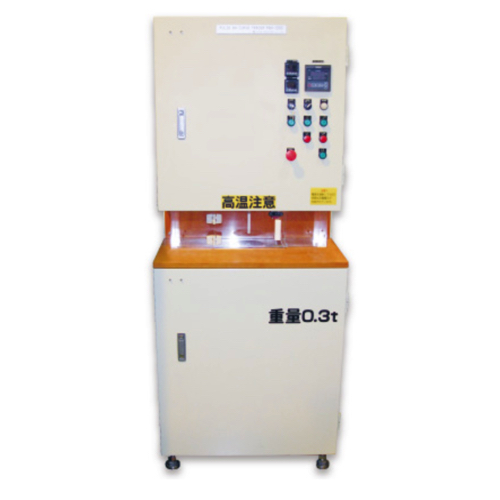

Nihon Denji Sokki (NDK) Pulse type PBH-1000 ຕົວຕິດຕາມເສັ້ນໂຄ້ງ (9.57MA/m (120kOe); 1.196MA/m/s (15MOe/s))
Power input: Single phase AC200±20V 50/60Hz 60A
Maximum Applied Magnetic Field: 9.57MA/m (120kOe)
Magnetic field sweep speed(*1): 1.196MA/m/s (15MOe/s); Pulse zero to maximum 8m sec
Excitation power supply: Pulse 10kA (2500V, 1500μF)
Measurement time (*1): Approx. 1-3 minutes
Magnet shape (*2):
Cylinder: Diameter 3 to 10mm, Height 3 to 20mm approx.
Prism: Width, depth: 3 to 10 mm each, height: 3 to 20 mm approx.
Repeatability (*3): J: ±1%, H: 1%
Temperature application: From room temperature to 200°C
Main measurement items: Residual flux density: Br, Saturation magnetic polarization: Js, Coercive force: HcB, HcJ, Maximum energy product: BHmax, Orientation: Br/Js, Angular ratio: Hk/HcJ
External dimensions [W×D×H]: 1000×1650×1650mm
Mass: Approx. 1200kg
*1 When all quadrants are measured and maximum magnetic field is set.
*2 Standard shape: Diameter 10mm, height 7mm, cylindrical
*3 Calculated using Br and HcJ for the same sample and under the same measurement conditions. Varies depending on sample method and characteristics.
