TSN Enabled: —
Slot Count: 4
Operating Temperature Range: -40 °C to 70 °C
Programming Method: LabVIEW FPGA
Processor Core: 667 MHz Dual-Core ARM Cortex A9
FPGA: Zynq-7000 (Z-7020)
Conformal Coated: No
Hard Drive Memory Size: 1 GB
RAM Size: 512 MB
Number of Ethernet Ports on Controller: 2
GigE Vision Support: No
Combines a processor running NI Linux Real-Time, a programmable FPGA, and modular I/O with vision, motion, and display capabilities.

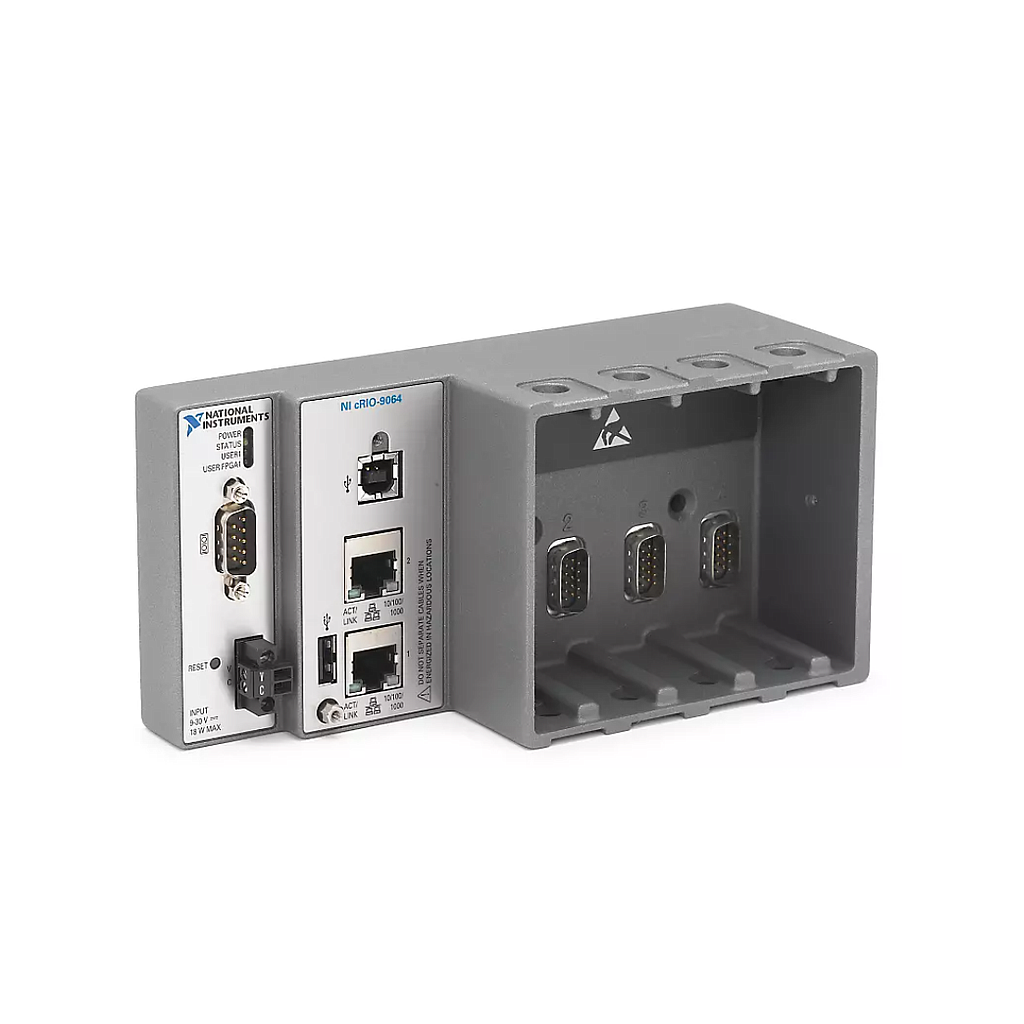

The CompactRIO Controller is a rugged, reliable, high-performance, industrial-grade embedded controller with industry-standard certifications. It is ideal for applications that need waveform acquisition, high-speed control or signal processing, hardware algorithm acceleration, hardware reliable tasks, or unique timing and triggering. Some models offer NI-DAQmx driver support and Time Sensitive Networking (TSN), which enables deterministic communication and synchronized measurements across standard Ethernet networks. This controller runs NI Linux Real‐Time, which combines the performance of a real‐time OS with the openness of Linux. You can use LabVIEW to create, debug, and deploy logic to the Xilinx FPGA and ARM or Intel processor.
The registered trademark Linux® is used pursuant to a sublicense from LMI, the exclusive licensee of Linus Torvalds, owner of the mark on a worldwide basis.
Datasheet
