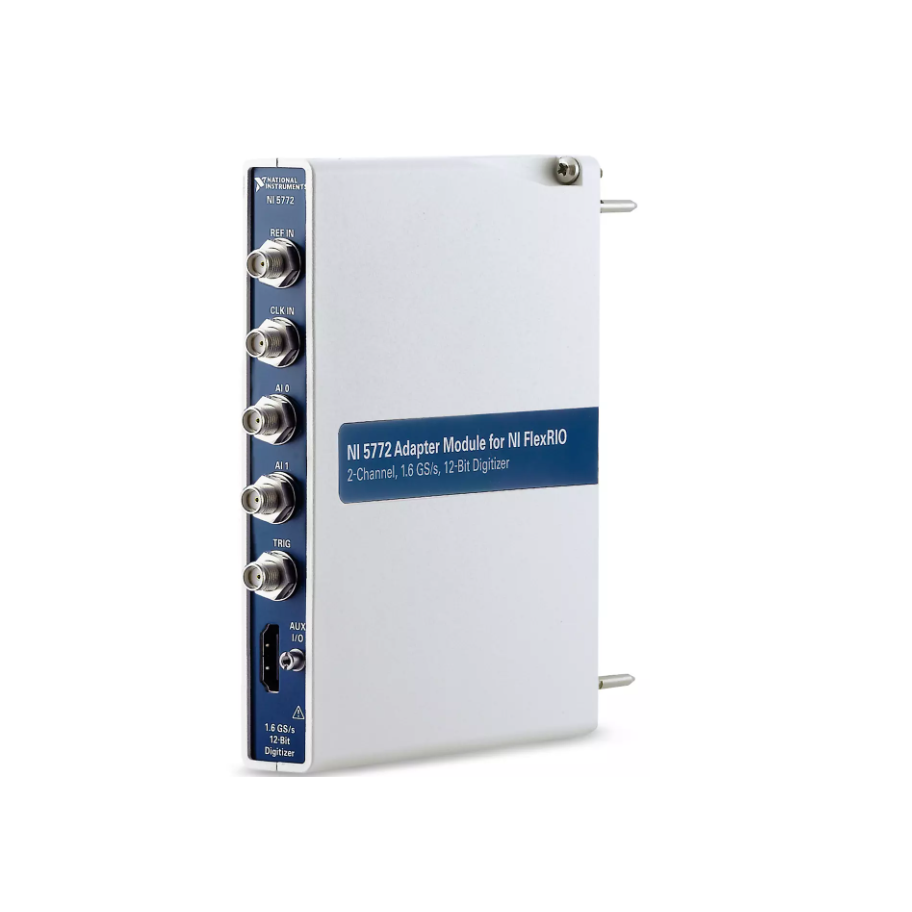

NI NI-5772 ໂມດູນອະແດບເຕີດິຈິຕອນສໍາລັບ FlexRIO (2 Channels, 1.6 GS/s, AC, Virtex-5 Kintex-7)

Number of Voltage Input Channels: 2

Maximum Sample Rate: 1.6 GS/s

Analog Input Resolution: 8 bits

Analog Input Coupling: AC

Analog Input Bandwidth: 2.27 GHz

Analog Input Voltage Range: -2 V to 2 V

Compatible FPGA: Virtex-5 Kintex-7

Provides high‐speed analog I/O to digitize signals from your transducer with a PXI FPGA Module for FlexRIO or the Controller for FlexRIO.

Digitizer Adapter Modules for FlexRIO can be used with a PXI FPGA Module for FlexRIO or the Controller for FlexRIO to create a high‐performance instrument with customizable firmware. With sampling rates from 40 MS/s to 3 GS/s and up to 32 channels, these modules cover a wide range of requirements for both time- and frequency‐domain applications. Digitizer adapter modules also provide digital I/O capability for interfacing with external hardware.

Datasheet
