Number of Voltage Input Channels: 12
Maximum Sample Rate: 120 MS/s
Analog Input Resolution: 16 bits
Analog Input Coupling: DC
Analog Input Bandwidth: 117 MHz
Analog Input Voltage Range: -0.45 V to 0.45 V
Compatible FPGA: Virtex-5 Kintex-7

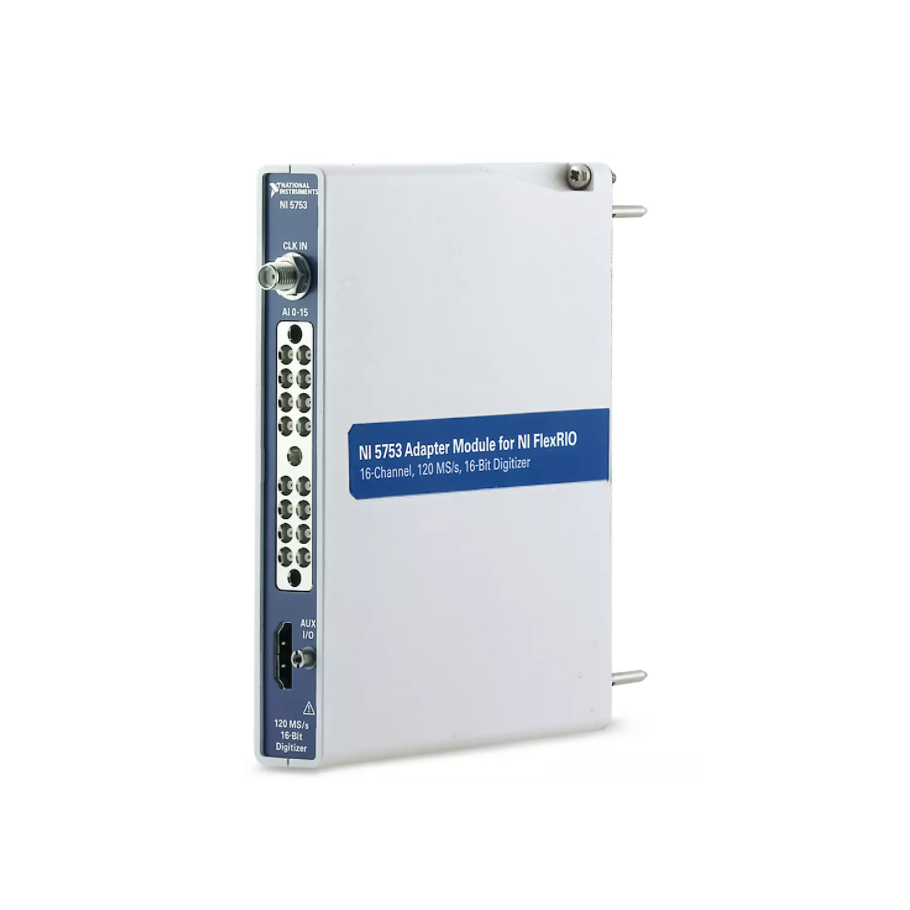

Provides high‐speed analog I/O to digitize signals from your transducer with a PXI FPGA Module for FlexRIO or the Controller for FlexRIO.
Digitizer Adapter Modules for FlexRIO can be used with a PXI FPGA Module for FlexRIO or the Controller for FlexRIO to create a high‐performance instrument with customizable firmware. With sampling rates from 40 MS/s to 3 GS/s and up to 32 channels, these modules cover a wide range of requirements for both time- and frequency‐domain applications. Digitizer adapter modules also provide digital I/O capability for interfacing with external hardware.
Datasheet
