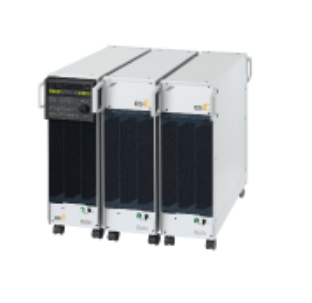

Output Power: 6 kVA
AC Output:
Form: Single-phase 2-wire floating output
Rated output voltage:
+ 100 V Range: 100 Vrms
+ 200 V Range: 200 Vrms
Output voltage setting range: :
+ 100 V Range: 0 Vrms to 150 Vrms (resolution of 0.1 V)
+ 200 V Range: 0 Vrms to 300 Vrms (resolution of 0.1 V)
Maximum output current (100V/200V): 60A/30A
Maximum output current (Peak value): Precision mode: up to 3.5 times effective value; High stability mode: up to 2.7 times high as effective value
Reverse power flow (reference value): 30 % of Maximum output current (effective value)
Output frequency:
+ Setting range: 5 Hz to 1100 Hz (resolution of 0.01 Hz)
+ power Frequency synchronization: Enable (synchronization range 48 Hz to 62 Hz)
Load regulation: Precision mode： ±0.5 % or less High stability mode： ±1.0 % or less
Line regulation: ±0.2 % or less
Load power factor range: 0 to 1 (lead or lag)
Output voltage waveform distortion rate: 0.3 % or less (40 Hz to 100 Hz, rated output voltage, typ.) , 0.5 % or less (rated output voltage)
Output noise level: 300 mVrms or less
DC Output:
Rated output voltage::
+ 100 V Range: +141 V
+ 200 V Range: +282 V
Voltage setting range::
+ 100 V Range: 0 V to + 203 V (resolution of 0.1 V)
+ 200 V Range: 0 V to + 406 V (resolution of 0.1 V)
Maximum output current: 27A/13.5A
Rated output power: 3.81kＷ
Power Supply:
Voltage: 170 V rms to 250 V rms, 48 Hz to 62 Hz
Power consumption (Approx.): 11.4kVA
Power factor: 0.90 or more (0.97 typ., at rated output)
Functions:
Measurement function: Voltage / Current / Active power / Apparent power and power factor
Power fluctuation test: Abrupt voltage change and frequency and/or voltage sweep functions
External signal input: Input impedance: 100 kΩ, (unbalanced), Input frequency range: 5 Hz to 1 kHz, Maximum input voltage: ±5 V, Gain: 100 times; External control input (ADD/ VCA )
Other functions: Protective function, AGC, Remote sensing, Auto Cal, Memory function, Limit value setting and Key lock
Interface: GPIB, RS-232
Weight (Approx.): 144 kg
Dimension : 240mm(W)×705mm(H)×800mm(D)(each configuration unit )
