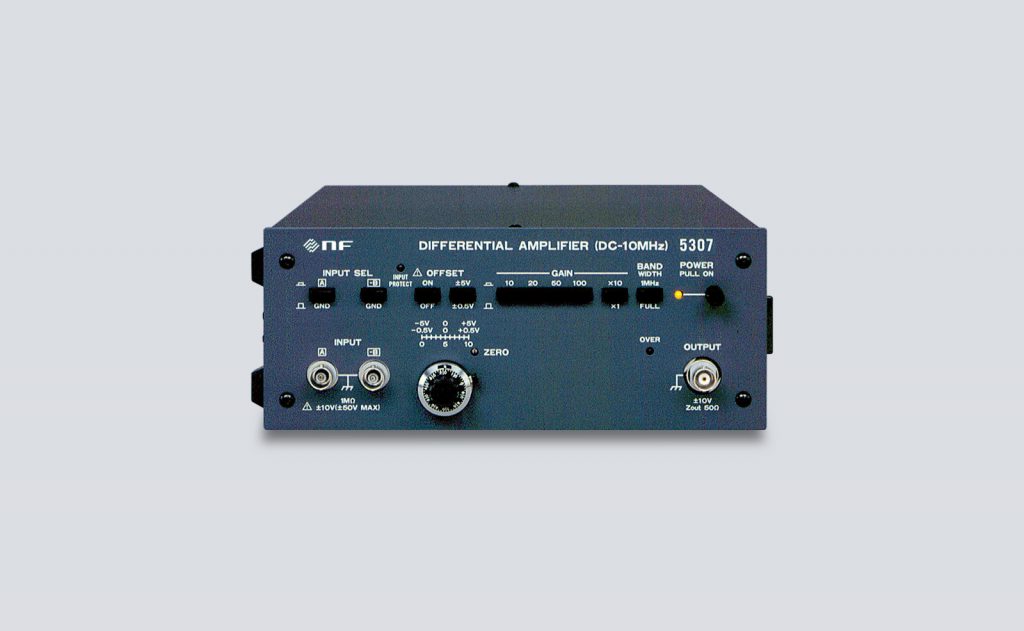

NF 5307 ເຄື່ອງຂະຫຍາຍສຽງທີ່ແຕກຕ່າງ (DC to 10MHz)
Wide bandwidth: DC to 10MHz
Gain: 10 to 1000 (1-, 2-, 5 sequence)
Differential input (single-ended configuration also selectable)
Input impedance: 1MΩ or 100MΩ (Selectable by the internal shorting plug)
Parallel capacitance: less than 35pF
Capacitance matching betweeen A and B inputs: ±3pF
CMRR (Common Mode Rejection Ratio): 120dB or higher
Maximum value of common mode input voltage: ± 10V
Low noise: 4nV/√Hz. (1kHz)
Band limiting filter: 1MHz LPFWide bandwidth: DC to 10MHz
Gain: 10 to 1000 (1-, 2-, 5 sequence)
Differential input (single-ended configuration also selectable)
Input impedance: 1MΩ or 100MΩ (Selectable by the internal shorting plug)
Parallel capacitance: less than 35pF
Capacitance matching betweeen A and B inputs: ±3pF
CMRR (Common Mode Rejection Ratio): 120dB or higher
Maximum value of common mode input voltage: ± 10V
Low noise: 4nV/√Hz. (1kHz)
Band limiting filter: 1MHz LPF
