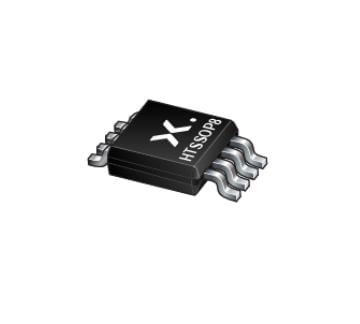

Nexperia NEX90515BPA-Q100F Low-Dropout (LDO) Linear Regulator 300mA, 40V ultra-low Iq (5.3 uA) low-dropout voltage regulator

Polarity: Positive

Output Type: Fixed

Mounting Style: SMD/SMT

Output Current: 150 mA

Output Voltage: 5 V

Dropout Voltage: 230 mV

Line Regulation: 10 mV

Load Regulation: 40 mV

Number of Outputs: 1 Output

Quiescent Current: 5.3 uA

Input Voltage - Max: 40 V

Input Voltage - Min: 3 V

Dropout Voltage - Max: 375 mV

Operating Temperature Range: - 40 C to + 150 C

Voltage Regulation Accuracy: 2 %

Maximum Operating Temperature: + 150 C

Minimum Operating Temperature: - 40 C

PSRR / Ripple Rejection - Typ: 60 dB
